IFGS-624PTF

Industrial 4-Port 10/100TX 802.3at PoE + 2-Port 1000X SFP Ring Ethernet Switch

Adicionar à cotação

O Planet IFGS-624PTF faz parte dos grupos dos PoE, Ethernet Industrial, Sistema PoE para Painel Solar, Dispositivos Alimentados por PoE, PoE Industrial, Switch Industrial Não Gerenciável, PoE Industrial, Sistema PoE para Painel Solar, Fast Ethernet Switch, DIN-rail Unmanaged Fast Ethernet PoE Switch, Solar and Battery Powered PoE Switch e dispõe dos seguintes recursos:

RING
802.3at 36 Watts
UTP Extend 250m
PoE Usage
40 degree ~75 degree

Hardware Specifications

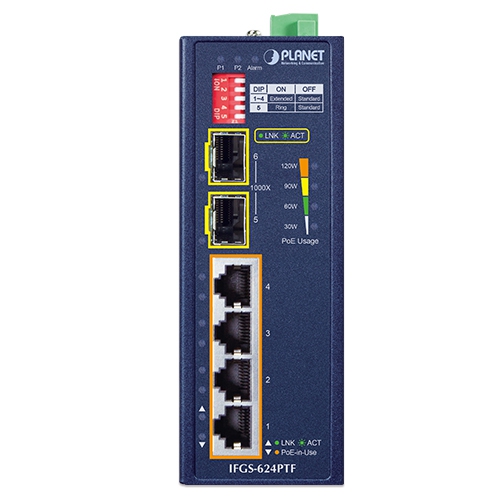

Copper Ports	4 x 10/100BASE-TX RJ45 TP Auto-MDI/MDI-X, auto-negotiation
PoE+ Injector Ports	Four ports with 802.3at PoE+ injector function (Ports 1 to 4)
SFP Slots	2 x 1000BASE-X SFP interfaces
DIP Switch	DIP-1-4 Position OFF (default)/ON Function Standard/Port 1-4 Extended Mode DIP-5 Position OFF (default)/ON Function Standard/Ring Note : 1.Power off the Industrial Ring Ethernet Switch before adjusting the DIP switch and then power it on. 2.Extend mode: PoE transmission distance of 250m at speed of 10Mbps. 3.The Ring function can connect to a simple Ring network with up to 8 units; the recovery time of data link can be as fast as 1ms. 4.Ring performance may vary depending on the length of the fiber optic and UTP cables. 5.The active Ring function is not compatible with the IEEE 802.1p class of service function.

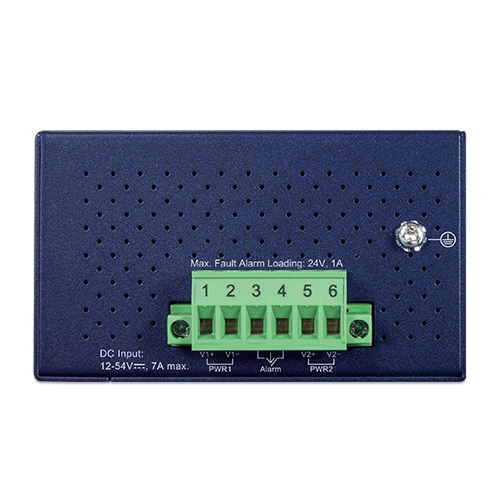

Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm	Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V
ESD Protection	±6KV air gap discharge ±6KV contact discharge
Surge Immunity	6KV DC
Enclosure	IP40 type metal case
Installation	DIN-rail kit and wall-mount ear
Dimensions (W x D x H)	50 x 86.1 x 135mm
Weight	613g
Power Requirements	DC 12~54V Redundant power with reverse polarity protection
Power Consumption / Dissipation	Max. 7 watts/23.8BTU@54V DC input (System) Max. 140 watts/477BTU@54V DC input (Ethernet + PoE Full Loading)
LED	3 x LED for System and Power: 　Green: DC Power 1 　Green: DC Power 2 　Red: Alarm 2 x LED for Copper Ports (Ports 1 to 4): 　Green: 10/100 LNK/ACT 　Amber: PoE-in-Use 1 x LED for SFP interface (Ports 5 to 6) 　Green: 1G LNK/ACT 4 x LED for PoE Usage (W) (Low to high): 　Amber: 30W, 60W, 90W and 120W
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Switch Fabric	4.8Gbps
Throughput (packet per second)	3.57Mpps@64bytes
Address Table	4K entries
Jumbo Frame	16K bytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Output	Per port 54V DC, Max. 36 watts
PoE Power Budget (max.)	120W maximum @48-54V DC 100W maximum @24V DC 60W maximum @12V DC
Max. Number of Class 2 PDs	4
Max. Number of Class 3 PDs	4
Max. Number of Class 4 PDs	4
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet 1000BASE-T IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service (Works under Ring function disable) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus PROFINET Traffic Pass-through with QoS
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27(Shock) IEC60068-2-6 (Vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing)

Datasheet

Date	Version	Description	Download
2024-10-25	1.0	IFGS-624PTF

User's Manual

Date	Version	Description	Download
2024-10-18	1.0	Initial Release.
