Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Ethernet Switch

O Planet IFGS-1022HPT faz parte dos grupos dos PoE, Ethernet Industrial, PoE Industrial, Switch Industrial Não Gerenciável, PoE Industrial, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, DIN-rail Unmanaged Fast Ethernet PoE Switch e dispõe dos seguintes recursos:

  • 802.3at 30-Watts
  • 802.3at 802.3af End-span
  • UTP Extend 250m
  • Redundant Power
  • IP-Code 30
  • -40-degree-~75-degree
IFGS-1022HPTIFGS-1022HPT
Hardware Specifications
Fast Ethernet Copper Ports Eight 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Port-1 to Port-8)
Gigabit Ethernet Copper Ports Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(shared with Port-9 and Port-10)
SFP/mini-GBIC Slots Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10)
PoE Injector Port Eight ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8)
Switch Architecture Store-and-Forward
Switch Fabric 5.6Gbps/non-blocking
Switch Throughput@64 bytes 4.1Mpps @64 bytes
MAC Address Table 16K entries
Shared Data Buffer 4Mb SRAM
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 10 Kbytes
DIP Switch (Port-1 to Port-8) Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps
Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps

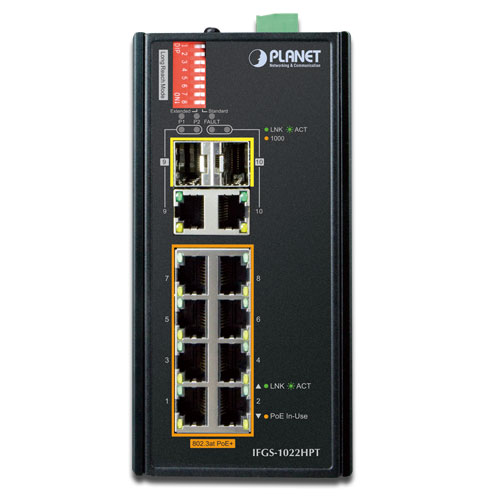

LED 3 x LED for System and Power:
 ■ Green: DC Power 1
 ■ Green: DC Power 2
 ■ Red : Power Fault Alarm
2 x LED for PoE Copper Port (Port-1~Port-8):
 ■ Green: LNK/ACT (10/100Mbps)
 ■ Orange: PoE-In-Use
2 x LED for 10/100/1000T Copper Port (Port-9~Port-10):
 ■ Green: LNK/ACT
 ■ Orange: 1000
2 x LED for per mini-GBIC interface (Port-9~Port-10)
 ■ Orange: LNK/ACT
 ■ Green: 1000

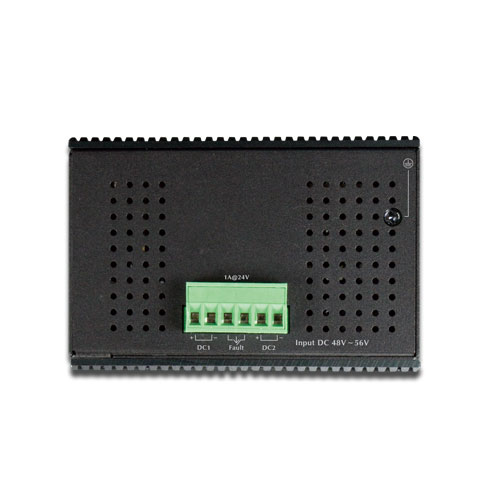

Connector Removable 6-pin terminal block
 ■ Pin 1/2 for Power 1
 ■ Pin 3/4 for power fault alarm
 ■ Pin 5/6 for Power 2
Alarm One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V AC
Power Requirements 48~56V DC, 5.5A (max.) (>51V DC for PoE+ output recommended)
Power Consumption/ Dissipation 6.4 watts, 21BTU (Standby without PoE function) at DC 56V power input
8.2 watts, 27BTU (Full loading without PoE function) at DC 56V power input
241 watts, 832BTU (Full loading with PoE function) at DC 56V power input
Dimensions (W x D x H) 72 x 107 x 161 mm
Weight 1034g
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN-rail kit and wall-mount kit
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 30 watts
PoE Power Budget Dual power input: maximum 240W (depending on power input)
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 8
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Datasheet

Date Version Description Download
2017-11-10 1.0 IFGS-1022HPT

User's Manual

Date Version Description Download
2017-10-27 1.0 Initial release.
