ICA-HM620

ICA-HM620

2 Mega-pixel PoE Plus Speed Dome Internet Camera

O Planet ICA-HM620 faz parte dos grupos dos PoE, Dispositivos Alimentados por PoE, IP Camera e dispõe dos seguintes recursos:

  • H.264
  • WDR
  • 1080 FULL-HD
  • icr
  • poe
  • IP-Code 66
Camera
Image device 1/2.8" Sony Progressive Scan CMOS Sensor
Lens f = 4.7~94mm, F1.6 Auto/Manual-iris/Focus
Mechanical IR-cut Filter
Angle of view (horizontal x vertical):
H: 5.2 ~ 55.2 degrees
V: 2.4 ~ 42.1 degrees
Min Illumination 0.04 Lux (B/W)
0.3 Lux (color)
Effective Pixels 1920 x 1080 pixels
Pan / Tilt / Zoom
Optical Zoom 20x
Digital Zoom 1~8x variable
Pan Degree 0 ~ 360 degrees continuous panning
Tilt Degree -10 ~ 190 degrees
Manual Speed 0.5 ~ 90 degrees/sec
Preset Point 256
Preset Accuracy 0.225 degrees
Preset Speed 5~400 degrees/sec
Sequence 8
Auto Pan 4
Camera Cruise 8
Privacy Mask 16
Proportional Pan & Tilt On / Off (Pan and tilt speed proportional to zoom ratio)
Resume after Power loss Yes
Zone Title 16
Home Function Preset, Sequence, Auto Pan, Cruise
Auto Flip Digital / Mechanical / Off
Digital Slow Shutter On / Off
Video Compression H.264 / M-JPEG
Video Resolution 1080p / 720p / VGA / D1
Frame Rate 30/25 fps @ 1080p
60/50 fps @ 720p
Image Setting Auto Electronic Shutter: 1/30 ~ 1/10k sec
Auto White Balance: Auto / Indoor / Outdoor / ATW
AGC: Auto / Manual
3D Digital Noise reduction
WDR
Color, sharpness
Mirror / Flip
Privacy Masks
Text, time and date overlay
Streaming Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG / H.264)
Audio
Audio Streaming Two-way audio
Audio Compression G.711 64kbps, G.726 32kbps, ADPCM, AAC
Microphone External microphone input
Audio Output Adjustable audio output gain
Network and Configuration
Standard IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3at PoE Plus
Protocol IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba
Security Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users 20 clients on-line monitoring at the same time
System Integration
Application Programming Interface Open API for software integration
ONVIF Compliant
Alarm Triggers Intelligent video motion detection and external input
Alarm Events File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alert output
Pre- and post-alarm buffering
General
Power Requirements AC 24V ± 10% (system & heater)
IEEE 802.3at (system)
Power Consumption 65 W (with heater)
Operating Temperature -45 ~ 55 degrees C (-49 ~ 131 degrees F)
Operating Humidity 10 ~ 90% (non-condensing)
Weight (includes LENS) 2.32 kg
Dimension (Φ x H) 191.97 x 282.11 mm
Protection Class IP66 outdoor classification, built-in fan and heater
Emission CE, FCC

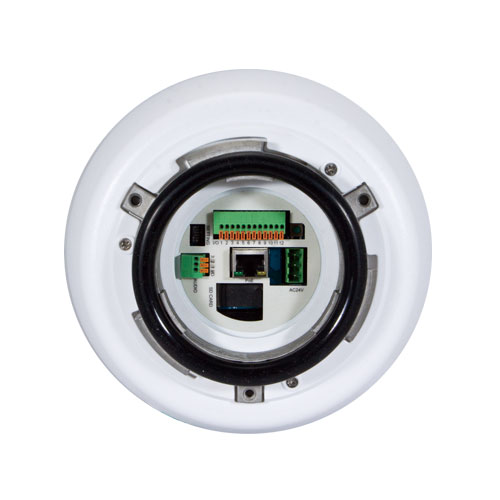

Connectors 10/100Mbps Ethernet, RJ45
DC power jack
Terminal block for 4 alarm input and 2 output
External MIC input
Audio out
Micro SD/SDHC card (max. 32GB, Class 10)
Factory default reset
