ICA-3480

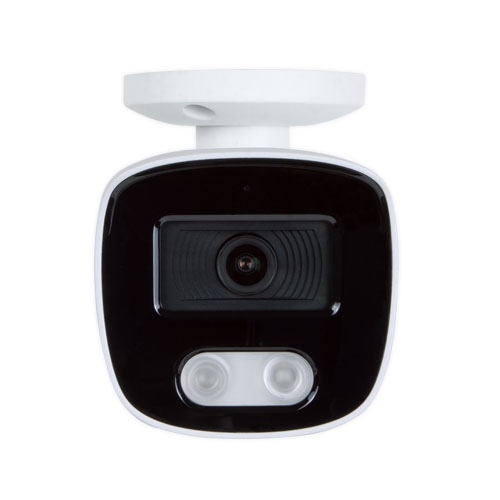

H.265+ 4MP Smart IR Bullet IP Camera

Adicionar à cotação

O Planet ICA-3480 faz parte dos grupos dos CFTV, IP Camera, H.265 IP Camera e dispõe dos seguintes recursos:

  • poe
  • PLANET DDNS
[item_en][item_en][item_en]
Camera
Image Sensor 1/3" Progressive Scan CMOS Sensor
Lens Focus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels:4MP
Angle of view:
Horizontal: 81 degrees
Vertical: 41 degrees
Min. Illumination 0.03 lux (color) @ F1.6
0lux (B/W) @ IR on
IR Illuminations Built-in smart IR illuminators, effective up to 25 meters
*The IR distance is based on the environment
Effective Pixels (H x V) 2560 x 1440
PoE Standard
Power over Ethernet IEEE 802.3af/at PoE PD
Video Compression H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
Video Resolution
ItemMain Stream:Sub Stream:

H.264/H.264+
H.265/H.265+
2688 x 1512@25fps
2560 x 1440@30fps
1920 x 1080@30fps
1280 x 720@30fps
1280 x 720@30fps
720 x 480@30fps
MJPEG/
Frame Rate Up to 25~30 fps for all resolutions
Bitrate 32~16384kbps
Shutter Time Auto: 1/3-1/100000 Sec
Image Setting Image Adjustment
Exposure Settings
Backlight Settings
Day and night switch
White Balance
Video Adjustment
Image Enhancement
Defog Model
Distortion
OSD Settings
Motion detection
3 configurable regions of privacy mask to protect personal privacy
Streaming Streaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
M-JPEG streaming over HTTP (server push)
Constant and variable bit rate
Audio
Audio Streaming One-way audio
Audio Compression G711A/U,AAC
Audio Input External microphone input
Networking & Configuration
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af/at Power over Ethernet
Protocol TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, PLANET DDNS, Easy DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, QoS, 802.1X, P2P, IPEYE, Cloud
Security User Management options for various authority
　Admin
　Operator
　Guest
Users On-line monitoring of 16 clients at the same time
Web Brower Microsoft IE8-11, Edge, Google Chrome, Firefox
App Yes (Android, IOS with P2P QR code)
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese
System Integration
Application Programming Interface ONVIF compliant
Alarm Triggering Motion detection / Video Tampering/ Intrusion Detection
Alarm Events SMTP, FTP, Cloud (Google)
Hardware Specifications
Power Requirements 12V DC, 0.7A
IEEE 802.3af/at Power over Ethernet
Power Consumption 4.2W(IR on)
Dimensions (W x D x H) 70 x 169 x 67.5 mm
Weight 446g
Reset Button Yes
LED 42µ x 2PCS

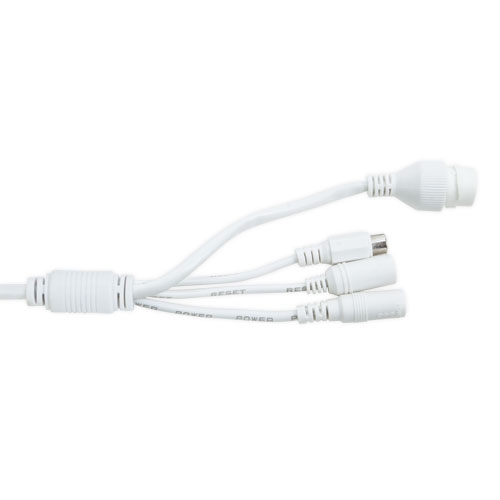

Connector 10/100Mbps Ethernet, waterproof/dustproof RJ45 connector
DC power jack
RCA audio in (white)
Enclosure IP67 metal case
Standards Conformance
Regulatory Compliance FCC Part 15 Class B, CE
NDAA Compliance Yes
Environment
Operating Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Datasheet
Date Version Description Download
2023-07-28 1.0 ICA-3480
Quick Guide
Date Version Description Download
2023-07-07 5.1 Initial release.
