GSW-2620VHP
GSW-2620VHP

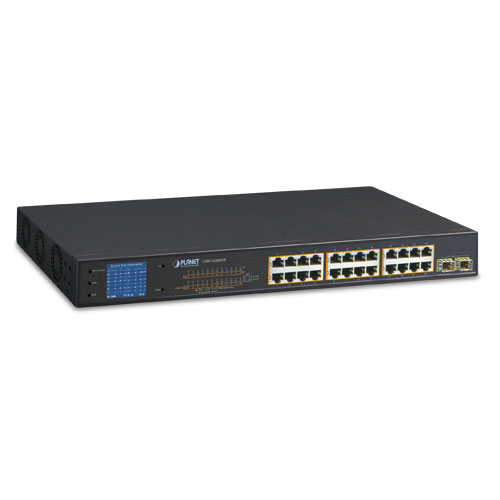

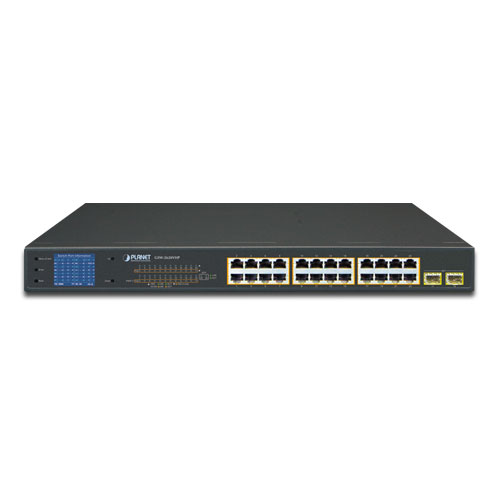

24-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit SFP Ethernet Switch with LCD PoE Monitor
O Planet GSW-2620VHP faz parte dos grupos dos LAN Switches, PoE, Switches Não Gerenciáveis, Switch PoE com LCD (Display), Switches PoE Não Gerenciáveis, Gigabit PoE Switch, 802.3at PoE+ Gigabit Switch e dispõe dos seguintes recursos:
- PoE+
- Port-LAN
- 802.3at 30-Watts
- Smart-LCD
- UTP Extend 250m
- Gigabit-Uplink
| Hardware Specifications | |
| 802.3af/802.3at PoE Injector Port | 24 |
| 10/100/1000BASE-T MDI/MDIX Ports | 24 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/non-blocking |
| Switch Throughput@64 bytes | 38.7Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Maximum Frame Size | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
| LED | System: Power (Green) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Red) 1000Mbps LNK/ACT (Green) PoE-in-Use (Orange) 1000BASE-X SFP Interfaces: LNK/ACT (Green) |
| LCD Monitor (W x D) | 40.6 x 30.5 mm, 2-inch |
| Buttom | Menu, Enter, Back, Up and Down |
| Dimensions (W x D x H) | 233 x 440 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 3.5kg |

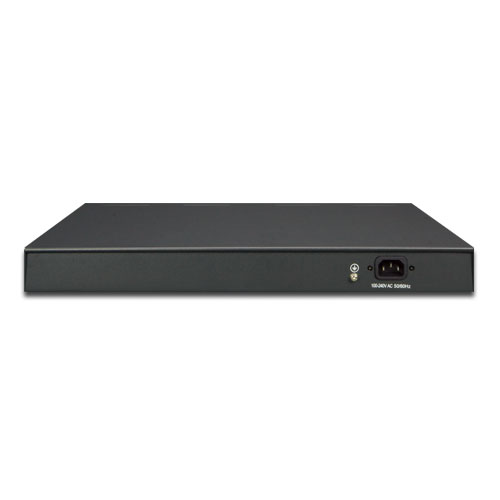

| Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 330watts/1132 BTU |
| Thermal Fan | 3 |
| ESD Protection | Contact discharge of ±6KV DC Air discharge of ±8KV DC |
| Surge Protection | ±6KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 53V-54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 53V-54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Budget | 300 watts |
| Max. Number of Class 2 PDs | 24 |
| Max. Number of Class 3 PDs | 23 |
| Max. Number of Class 4 PDs | 11 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
