GSW-2620HP

GSW-2620HP

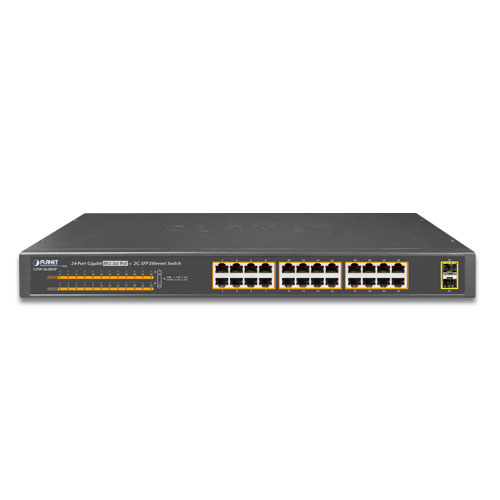

24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

O Planet GSW-2620HP faz parte dos grupos dos LAN Switches, PoE, Switches Não Gerenciáveis, Switches PoE Não Gerenciáveis, Gigabit PoE Switch e dispõe dos seguintes recursos:

  • poe
  • 802.3at 802.3af
  • 10M 100M 1000M
  • jumbo frame
  • 30W PoE
  • kg
Hardware Specifications
10/100/1000BASE-T Copper Ports 24 auto-MDI/MDI-X ports
802.3af/802.3at PoE Injector Ports 24
1000BASE-X SFP/mini-GBIC Slots 2
Switch Architecture Store-and-Forward
Switch Fabric 52Gbps/non-blocking
Switch Throughput@64 bytes 38.6Mpps@64 bytes
MAC Address Table 8K entries
Jumbo Frame 9216 bytes
Flow Control IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex
LED System: Power (Green)
10/100/1000T RJ45 Interfaces
1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange)
1000Mbps SFP Interfaces
1000 LNK / ACT (Green)
Dimensions (W x D x H) 445 x 207 x 45 mm (1U height)
Enclosure Metal
Weight 2.85kg

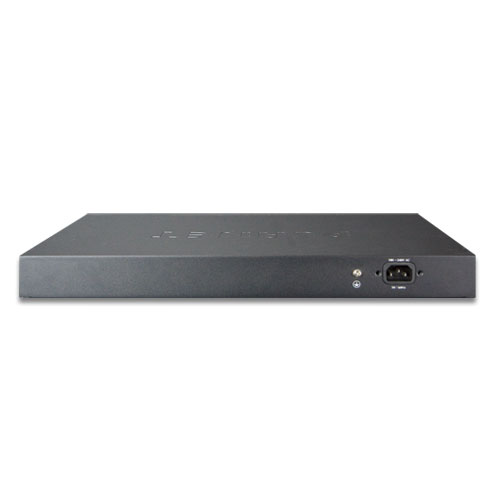

Power Requirements 100~240V AC, 50/60Hz, 4A (max.)
Thermal Fan 2
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Output Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget 220 watts
Number of PDs, 7 watts 24
Number of PDs, 15.4 watts 14
Number of PDs, 30 watts 7
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.3az Energy-Efficient Ethernet
Environment
Operating Temperature:0 ~ 50 degrees C
Relative Humidity:5 ~ 95% (non-condensing)
Storage Temperature:-10 ~ 70 degrees C
Relative Humidity:5 ~ 95% (non-condensing)
