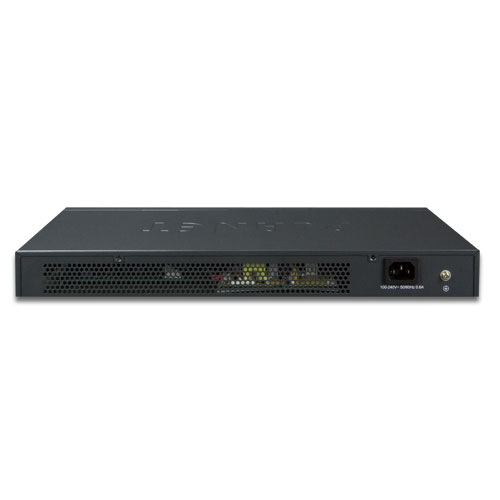

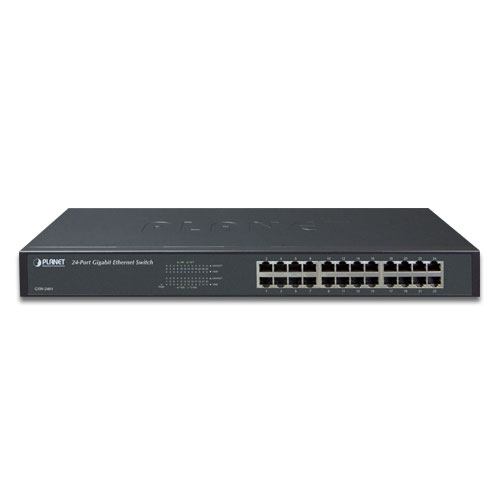

GSW-2401
GSW-2401
24-Port 10/100/1000BASE-T Gigabit Ethernet Switch
O Planet GSW-2401 faz parte dos grupos dos LAN Switches, Switches Não Gerenciáveis e dispõe dos seguintes recursos:
- plug play
- auto nego
- 10M 100M 1000M
- jumbo frame
- auto
| Hardware Specifications | |
| Hardware Version | Version 7 |
| 10/100/1000BASE-T MDI/MDIX Ports | 24 |
| Throughput (packet per second) | 35.7Mpps |
| Switch Fabric | 48Gbps/non-blocking |
| Weight | 1.9kg |
| Power Consumption/Dissipation | 13.5 watts/46 BTU |
| Power Requirements | 100-240V AC, 0.6A, 50/60Hz |
| Dimensions (W x D x H) | 440 x 180 x 44 mm, 1U height |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 8K entries |
| Jumbo Packet Size | 10K |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Full-duplex flow control) |
| Environmental Specifications | |
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
| Humidity | Operating: 5~95% Storage: 5~95% (non-condensing) |
| * The specifications are for the GSW-2401 hardware version 7 only. | |
