GSW-1820VHP

GSW-1820VHP

16-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit SFP Ethernet Switch

O Planet GSW-1820VHP faz parte dos grupos dos LAN Switches, PoE, Switches Não Gerenciáveis, Switch PoE com LCD (Display), Switches PoE Não Gerenciáveis, Gigabit PoE Switch, 802.3bt Ultra PoE Switch, 802.3at PoE+ Gigabit Switch e dispõe dos seguintes recursos:

  • PoE+
  • 802.3at 30-Watts
  • SFP
  • PoE-Status
  • Port-LAN
  • UTP Extend 250m
Hardware Specifications
10/100/1000BASE-T MDI/MDIX Ports 16
1000BASE-X SFP Interfaces 2
PoE Injector Port 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16
Switch Architecture Store-and-Forward
Switch Fabric 36Gbps/non-blocking
Switch Throughput@64 bytes 26.8Mpps@64Bytes
MAC Address Table 8K entries, automatic source address learning and aging
Maximum Frame Size 9K bytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
LED System:
Power (Green)
10/100/1000BASE-T RJ45 Interfaces:
10/100Mbps LNK/ACT (Orange)
1000Mbps LNK/ACT (Green)
1000BASE-X SFP Interfaces:
1000Mbps LNK/ACT (Green)
PoE Interfaces:
PoE-in-Use (Orange)
LCD Monitor ■ PoE loading of each port
■ Total PoE power usage
■ Total PoE budget
■ System status, such as overload, low voltage, over voltage and high temperature
DIP Switch Selectable operation mode
■ Standard
■ VLAN
■ Extend + VLAN
Dimensions (W x D x H) 233 x 440 x 44 mm (1U height)
Enclosure Metal
Weight 3.3kg

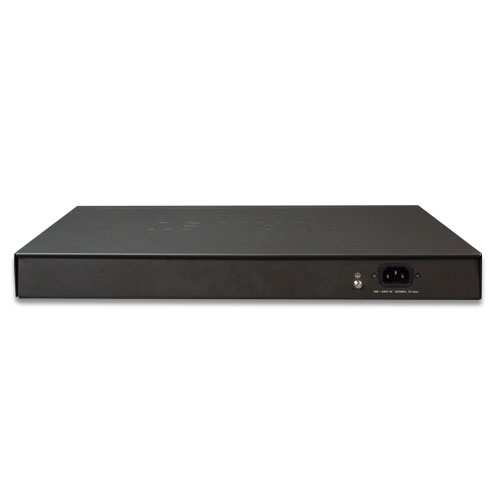

Power Requirements AC 100~240V, 50/60Hz, 5A max.
Power Consumption/Dissipation Max. 330 watts/1132 BTU
Thermal Fan 2
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 52V DC, 600mA. max. 30 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 300 watts
Max. Number of Class 2 PDs 16
Max. Number of Class 3 PDs 16
Max. Number of Class 4 PDs 11
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
