GSD-805

GSD-805

8-Port 10/100/1000BASE-T Gigabit Ethernet Switch

O Planet GSD-805 faz parte dos grupos dos LAN Switches, Switches Não Gerenciáveis, Switches SOHO e dispõe dos seguintes recursos:

  • vlan
  • auto
  • auto nego
  • 10M 100M 1000M
Hardware Specifications

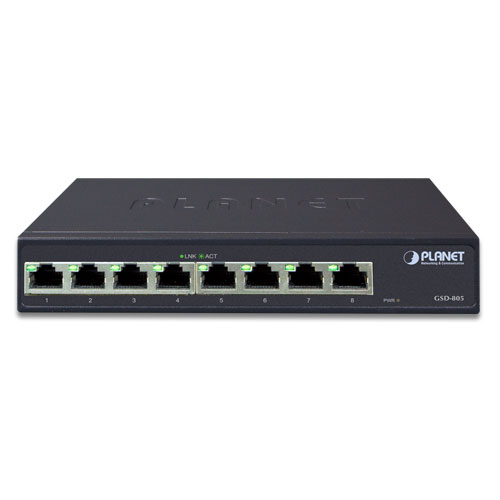

Network Connector 8-Port RJ45 for 10/100/1000BASE-T, auto MDI/MDIX
LED Display System: Power(Green)
Per port: 10/100/1000 LNK/ACT(Green)
Switch Architecture Store and Forward switch architecture
MAC Address Table 8K MAC address table with auto learning function
Packet Buffer 1Mbit
Switch Fabric 16Gbps
Switch Throughput 11.9Mpps @64 bytes
Jumbo Packet 9216 bytes
Flow Control Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex

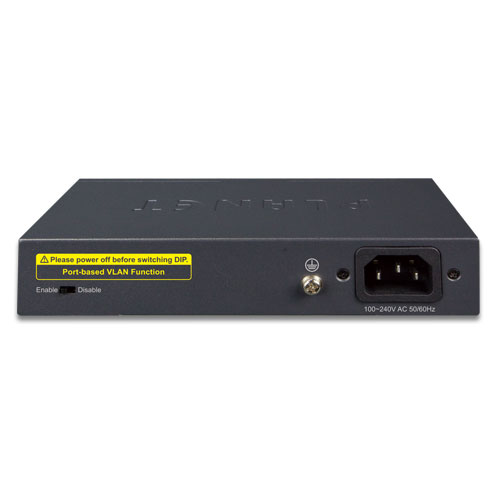

Power Requirements Internal power 100-240V AC, 50/60Hz, 0.2A
Power Consumption Max. 2.4 watts/8.1 BTU
Dimensions (W x D x H) 168 x 93 x 32mm
ESD Protection Contact Discharge 4KV DC
Air Discharge 6KV DC
EFT Protection ESD (Ethernet): 2KV
Surge (EFT for power): 4KV
Surge Protection Different module ±1.5KV
Common mode ±2KV
Electrostatic Standard ±2KV
Weight 428g
Standard Conformance
EMI Safety FCC Class B, CE
Standard Compliance IEEE 802.3   Ethernet
IEEE 802.3u  Fast Ethernet
IEEE 802.3ab  Gigabit Ethernet
IEEE 802.3az  Energy-Efficient Ethernet
IEEE 802.3x  Flow Control
Environment
Operating Environment 0 ~ 50 degrees C
Storage Environment -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity, non-condensing
Storage Humidity 5 ~ 95%, relative humidity, non-condensing

Datasheet

Date Version Description Download
2017-11-24 1.0 GSD-805

User's Manual

Date Version Description Download
2017-11-28 3.0 Release for hardware version 3.0.
