GS-5220-8P2T2S

GS-5220-8P2T2S

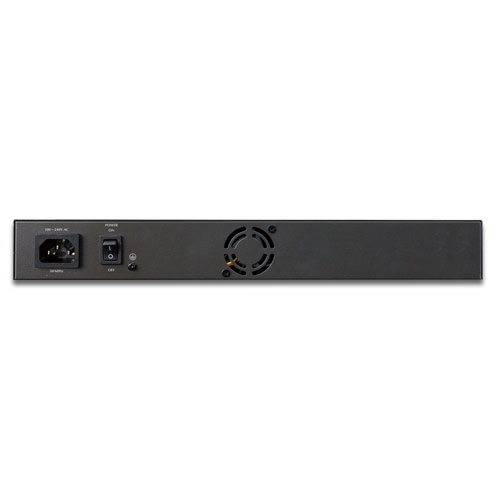

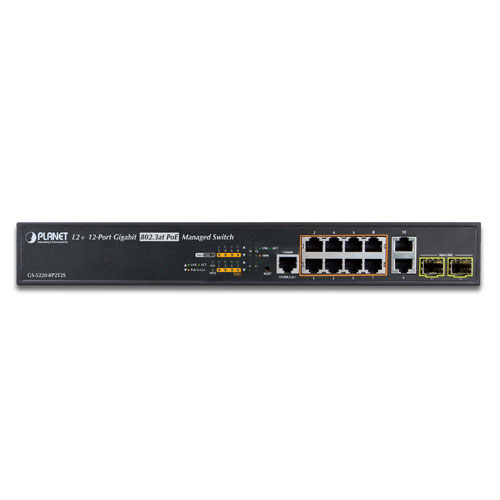

L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

O Planet GS-5220-8P2T2S faz parte dos grupos dos LAN Switches, PoE, Switches Gerenciáveis Camada 2/2+, Switches PoE Gerenciáveis Camada 2/2+, L2+ Gigabit Ethernet Switch, 802.3at PoE+ L2+ Gigabit Switch e dispõe dos seguintes recursos:

  • L3-Static-Routing
  • 30W PoE
  • IPv6-Management
  • 802.1Q VLAN
  • mstp
  • SSL-SSH
Hardware Specifications
Copper Ports 10 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 x 100/1000BASE-X SFP interfaces with Port-11 to Port-12
Supports 100/1000Mbps dual mode and DDM
PoE Injector Port 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console 1 x RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 24Gbps / non-blocking
Throughput 17.76Mpps@64Bytes
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 1392KB
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9KB
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED System:
Fan Alert (Green), SYS (Green), PWR (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 8):
10/100/1000Mbps LNK/ACT (Green)
PoE-in-Use (Orange)
10/100/1000T RJ45 Interfaces (Port 9 to Port 10):
LNK/ACT (Green)
1000Mbps (Orange)
100/1000Mbps SFP Combo Interfaces (Port 11 to Port 12):
LNK/ACT (Green)
1000Mbps (Orange)
Power Requirements 100~240V AC, 50/60Hz
Power Consumption (Full Loading) 320 watts/1091.9 BTU (max.)
ESD Protection 6KV DC
Dimensions (W x D x H) 330 x 200 x 43.5 mm, 1U height
Weight 2kg
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at PoE/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 54V DC, max. 30.8 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 240 watts (max.) @ 25 degrees C
200 watts (max.) @ 50 degrees C
PoE Ability PD @ 7 watts: 8 units
PD @ 15.4 watts: 8 units
PD @ 30.8 watts: 8 units
Layer2 Management Functions
Basic Management Interfaces Console, Telnet, Web browser, SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN 802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/Static Trunk
Supports 6 trunk groups with 8 ports per trunk
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP Snooping IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
SNMP MIBs RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Layer 3 Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
Standards Conformance
Regulatory Compliance FCC Part 15 Class B, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Datasheet

Date Version Description Download
2015-09-04 1.0 GS-5220-8P2T2S

Quick Guide

Date Version Description Download
2017-01-10 1.3 Add GS-5220-20T and GS-5220-16T series.
2015-08-07 1.2 Initial release.

User's Manual

Date Version Description Download
2015-10-22 1.1 Command Guide release for SGS-5220 and GS-5220 series.
2015-09-11 1.2 Initial release.

EC Declaration

Date Version Description Download
2016-04-19 1.0 EC Declaration
