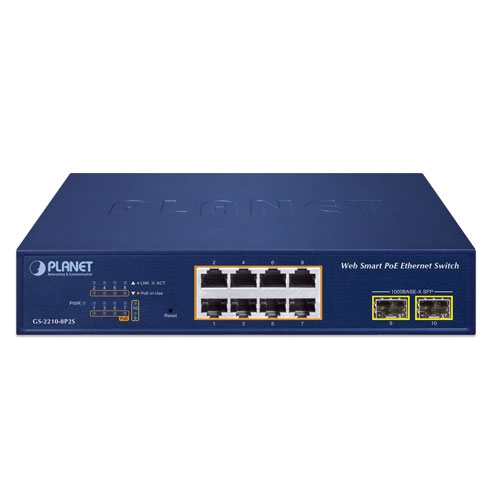

GS-2210-8P2S

8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch

Adicionar à cotação

O Planet GS-2210-8P2S faz parte dos grupos dos LAN Switches, PoE, 802.3at PoE+ L2 Web Smart Switch, Layer 2 Smart Ethernet Switches, Layer 2 Smart PoE Switches e dispõe dos seguintes recursos:

NMS
PoE Schedule
802.1Q VLAN
qos
802.3at 802.3af End span

Hardware Specifications
Copper Ports	8 10/100/1000BASE-T RJ45 copper ports
PoE Injector Port	8 ports with 802.3af/802.3at PoE+ injector function
SFP Slots	2 x 100/1000BASE-X SFP interface
Flash Memory	16Mbytes
Reset Button	< 10 sec: System reboot > 10 sec: Factory default
ESD Protection	Contact ±6KV , Air ±8KV
Surge Protection	Differential mode ±2KV , Common mode ±4KV
Dimensions (W x D x H)	220 x 150 x 44mm
Weight	1235g
Power Consumption	5 watts / 17BTU (System) 130 watts/ 443.3 BTU (System + PoE)

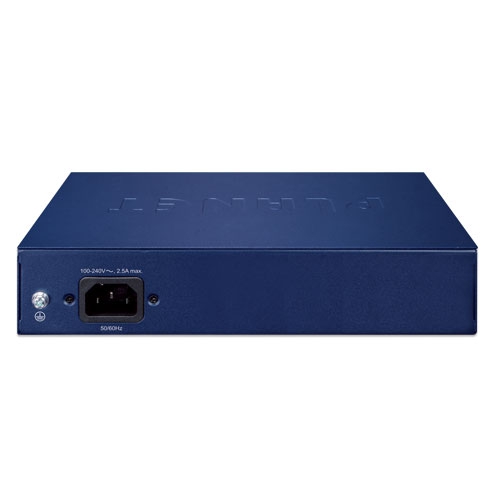

Power Requirements	AC 100~240V, 50/60Hz
Fan	2
LED	System: 　PWR (Green) Ports: 　LNK/ACT (Green) 　PoE-in-Use (Amber)
Switching Specifications
Switch Architecture	Store-and-forward
Switch Fabric	20Gbps/non-blocking
Switch Throughput	14.88Mpps
Address Table	8K MAC address table with auto-learning, auto-aging
Shared Data Buffer	4.1MB
Jumbo Frame	10KBytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Power over Ethernet Specifications
PoE Standard	IEEE 802.3at PoE+ PSE
PoE Power Supply Type	End-span
PoE Power Output	32W (max.)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	120 watts (max.)
Layer 2 Functions
Port Configuration	EEE Green energy savings disable/enable Port disable/enable/reboot Flow control disable/enable Bandwidth control on each port Port loopback protection
Port Status	Display each port’s speed duplex mode, Display link status Display flow control status Display auto negotiation status Display Green energy saving status
Port Mirroring	In / Out / All Many-to-1 monitor
VLAN	802.1Q tagged VLAN, up to 16 VLAN groups
Bandwidth Control	TX/RX/Both
Link Aggregation	static trunk Supports 8 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: 　IEEE 802.1p CoS/ToS 　IPv4 DSCP 　Port-based WRR
Multicast	IPv4 IGMP v1/v2 snooping Up to 256
Security Functions
Security	Port isolation DHCP Snooping
Switch Management Functions
System Configuration	Telnet, Web browser
Management	Authentication for IPv4 Telnet user name and password Telnet Cable Diagnostics IP address or domain name Ping Test NTP (Network Time Protocol) PLANET Smart Discovery Utility PLANET NMS system PLANET NMSViewerPro
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)

Datasheet

Date	Version	Description	Download
2024-04-26	1.0	GS-2210-8P2S

Quick Guide

Date	Version	Description	Download
2024-02-06	1.1	Initial release.
