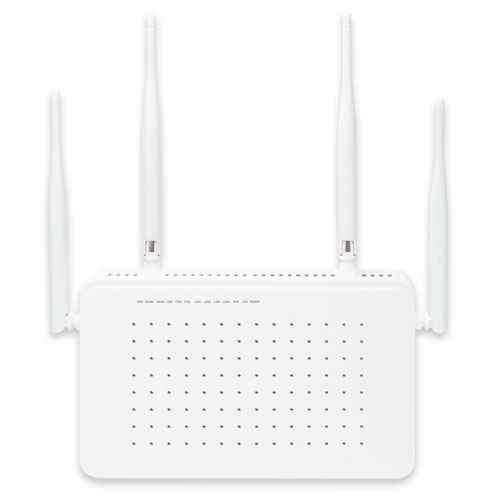

GPN-400ACV

GPON HGU with 4-Port GbE, 1200Mbps 802.11ac Wireless and 2-Port FXS (1 x USB)

Adicionar à cotação

O Planet GPN-400ACV faz parte dos grupos dos Passive Optical Network, GPON ONU e dispõe dos seguintes recursos:

  • GPON
  • 802.11ac
  • acl
  • igmp
  • GUI Management
GPN-400ACVGPN-400ACVGPN-400ACV
Hardware Specifications
Interfaces [PON Port]
1 x GPON Port, SC/UPC

[Ethernet Port]
4 x 10/100/1000T RJ45

[FXS Port]
2 x RJ11 Port

[USB Port]
1 x USB 2.0 Port Type A, 5V 500mA
Antenna Gain:
2.4GHz: 2 x 5dBi external antenna
5GHz: 2 x 5dBi external antenna
Button 1 x Power ON/OFF button
1 x reset button (Press for about 10 seconds to reset the device to factory default.)
1 x WLAN enable/disable button
1 x LED on/off button
Dimensions (W x D x H) 230 x 140 x 34.9 mm
Weight 400g
Power Input 12V DC, 1.5A
Power Consumption 15W
PON Specifications
Transmission Speed Downstream: 2.5 Gbps
Upstream: 1.25 Gbps
Optic Wavelength TX: 1310mm
RX:1490mm
Optical Receive Sensitivity < -28 dBm
Optical Tx Power 0.5~5 dBm
Wireless Interface Specifications
Standard IEEE 802.11ac 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency Band Simultaneous 2.4GHz and 5GHz
Modulation Type 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
Data Transmission Rates 2.4GHz up to 300Mbps
5GHz up to 867Mbps
Channel 2.4GHz:
FCC (America): 2.412~2.462GHz (11 Channels)
ETSI (Europe): 2.412~2.472GHz (13 Channels)
5GHz:
5.180-5.240GHz, 5.745-5.825GHz (up to 9 channels)

*The actual channels in application will vary depending on the regulation in different regions and countries.
Channel Width 802.11ac: 20/40/80MHz
802.11n: 20/40MHz
Max. RF Power / EIRP 2.4GHz: < 20dBm
5GHz: < 20dBm
Receive Sensitivity [2.4GHz]
11g (54Mbps): -77dBm
11n (20M) mode: -74dBm
11n (40M) mode: -72dBm

[5GHz]
11a (6Mbps): -89dBm
11a (54Mbps): -79dBm
11n (20M) mode: -72dBm
11n (40M) mode: -71dBm
11ac (20M) mode: -71dBm
11ac (40M) mode: -66dBm
11ac (80M) mode: -63dBm
Wireless Management Features
Encryption Security
  • WEP (64/128-bit) encryption security
  • WPA-Personal / WPA2-Personal (TKIP/AES)
  • Mixed WPA / WPA2-PSK
Wireless Security Provides wireless LAN ACL (Access Control List) filtering
Wireless URL filtering
Enables/Disables SSID broadcast
Wireless Advanced WMM (Wi-Fi multimedia): 802.11e wireless QoS
Provides wireless statistics
Max. Supported Clients 2.4GHz wireless: 32
5GHz wireless: 32
Router Features
Internet Connection Type Shares data and Internet access for users, supporting the following Internet accesses:
  • DHCP
  • Static IP
  • PPPoE
Firewall NAT/NAPT firewall, SPI firewall
Built-in NAT server which supports Port Forwarding and DMZ
Built-in firewall with URL filtering, and MAC address filtering
LAN Built-in DHCP server supporting static IP address distribution
Supports packet statistics
USB Sharing Samba
DLNA media server
System Management Web-based (HTTP) management interface
Remote management (WAN Access Control)
Supports UPnP, DDNS
SNTP synchronization
System log
VoIP Protocols and Standard
Standard SIP/H.248
T.38 (G.711 Fax pass-through)
Voice Codec G.711A/G.711U/G.723/G.729
Voice Standard VAD (Voice Activity Detection)
CNG (Comfort Noise Generation)
Environment Specifications
Temperature Operating temperature: 0 ~ 45 degrees C
Storage temperature: -40 ~ 85 degrees C
Humidity Operating Humidity: 10 ~ 85% non-condensing
Storage Humidity: 5 ~ 95% non-condensing
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.11ac (2T2R, up to 867Mbps)
IEEE 802.11n (2T2R, up to 300Mbps)
