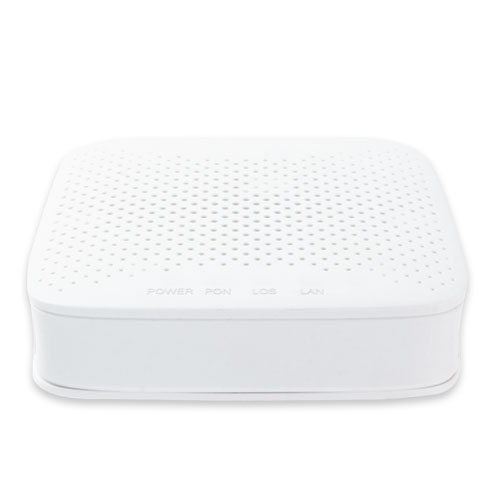

GPN-100

GPON SFU ONT with 1GbE Port

Adicionar à cotação

O Planet GPN-100 faz parte dos grupos dos Passive Optical Network, GPON ONU e dispõe dos seguintes recursos:

  • GPON
  • 10M 100M 1000M
  • Plastic Housing
GPN-100
Hardware Specifications
Transmission Speed Downstream: 2.5 Gbps
Upstream: 1.25 Gbps
Port [PON Port]
1 x PON Port, SC/UPC

[Ethernet Port]
1 x RJ45 (10/100/1000BASE-T)
Fiber Maximum Distance 20km
Optic Wavelength TX: 1310mm RX: 1490mm
Optical Receive Sensitivity -28 dBm
Optical TX Power 0.5~5 dBm
Reset Button
LED Indicators 1 Power LED
1 PON LED
1 LAN Link LED
1 LOS LED
EMS Utility Specifications
ONT Features MAC address learning
Supports IGMP snooping
64 MAC addresses support
Service level agreement (SLA) support
Supports ACL and MAC filtering
Remote loop-back test
IEEE 802.3ah compliant forward error correction (FEC)
Environment Specifications
Dimensions (W x D x H) 80 x 75 x 24 mm
Weight 100g
Power Input 12V DC, 0.5A
Temperature Operating temperature: 0 ~ 50 degrees C
Storage temperature: -40 ~ 85 degrees C
Humidity Operating Humidity: 10 ~ 85% non-condensing
Storage Humidity: 5 ~ 95% non-condensing
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
ITU-T G.984/G.988
ITU-T Y.1291
Safety CE
Datasheet
Date Version Description Download
2020-08-07 1.0 GPN-100
User's Manual
Date Version Description Download
2020-05-12 1.0 Initial Release
