FSD-1008HP

FSD-1008HP

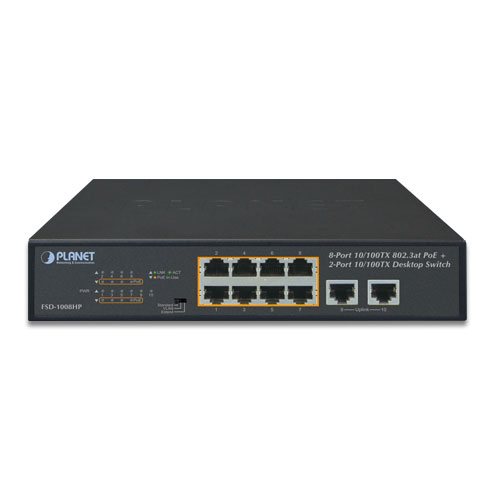

8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch

O Planet FSD-1008HP faz parte dos grupos dos LAN Switches, PoE, Switches Não Gerenciáveis, Switches PoE Não Gerenciáveis, Fast Ethernet PoE Switch e dispõe dos seguintes recursos:

  • UTP Extend 250m
  • Fanless
  • Port-LAN
  • 30W Per-Port
  • 802.3at 802.3af End-span
  • PoE+
FSD-1008HPFSD-1008HPFSD-1008HP
Hardware Specifications
Copper Port 10 10/100BASE-TX MDI/MDIX Ports
PoE Injector Port 8-port with 802.3at/af PoE injector function with Port-1 to Port-8
Switch Architecture Store-and-Forward
Switch Fabric 2Gbps/non-blocking
Switch Throughput@64 bytes 1.48Mpps@64 bytes
MAC Address Table 8K entries, automatic source address learning and aging
Maximum Frame Size 1522 bytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
LED System:
  • Power (Green)

10/100BASE-TX RJ45 interfaces:
  • 10/100Mbps LNK/ACT (Green)

PoE interfaces:
  • PoE-in-Use (Orange)
DIP Switch Selectable operation mode
  • Standard
  • VLAN
  • Extend
Dimensions (W x D x H) 220 x 150 x 43 mm (1U height)
Enclosure Metal
Weight 1230 g

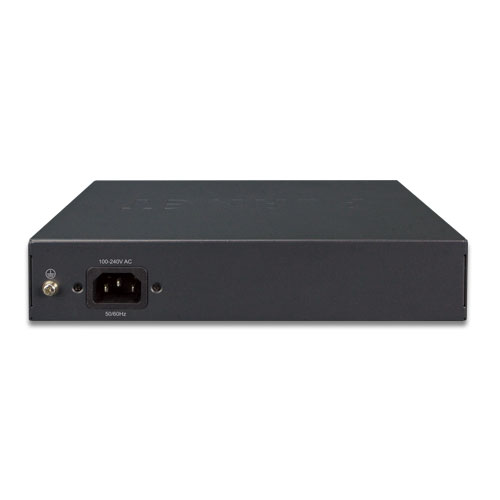

Power Requirements AC 100~240V, 50/60Hz, 2.5A max.
Power Consumption/ Dissipation System On: Max. 2.4 watts/8.1 BTU
Ethernet Full Loading: Max. 5 watts/10.2 BTU
PoE Full Loading: Max. 129 watts/440.1 BTU
ESD Protection Contact discharge of 4KV DC
Air discharge of 6KV DC
Thermal Fan Fanless
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 55V DC, 540mA. max. 30 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
