FGSW-2622VHP

FGSW-2622VHP

24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP + 2-Port SFP Ethernet Switch with LCD PoE Monitor

O Planet FGSW-2622VHP faz parte dos grupos dos LAN Switches, PoE, Switches Não Gerenciáveis, Switch PoE com LCD (Display), Switches PoE Não Gerenciáveis, Fast Ethernet PoE Switch, 802.3bt Ultra PoE Switch, 802.3at PoE+ Gigabit Switch, 802.3at PoE+ Fast Ethernet Switch e dispõe dos seguintes recursos:

  • PoE+
  • Port-LAN
  • 802.3at 30-Watts
  • Smart-LCD
  • Gigabit-Uplink
  • SFP
Hardware Specifications
802.3af/802.3at PoE Injector Port 24
10/100BASE-TX MDI/MDIX Ports 24
10/100/1000BASE-T MDI/MDIX Ports 2
1000BASE-X SFP/mini-GBIC Slots 2
Switch Architecture Store-and-Forward
Switch Fabric 12.8Gbps/non-blocking
Switch Throughput@64 bytes 9.5Mpps@64bytes
MAC Address Table 8K entries
Maximum Frame Size 9216 bytes
Flow Control IEEE 802.3x pause frame for full duplex; back pressure for half duplex
LED System:
Power (Green)

10/100BASE-TX RJ45 Interfaces:
10/100Mbps LNK/ACT (Green)
PoE-in-Use (Orange)

10/100/1000BASE-T RJ45/SFP Interfaces:
LNK/ACT (Green)
10/100Mbps (Red)
1000Mbps (Green)
LCD Monitor (W x D) 40.6 x 30.5 mm, 2-inch
Button Menu, Enter, Back, Up and Down
Dimensions (W x D x H) 233 x 440 x 44 mm (1U height)
Enclosure Metal
Weight 3.4kg

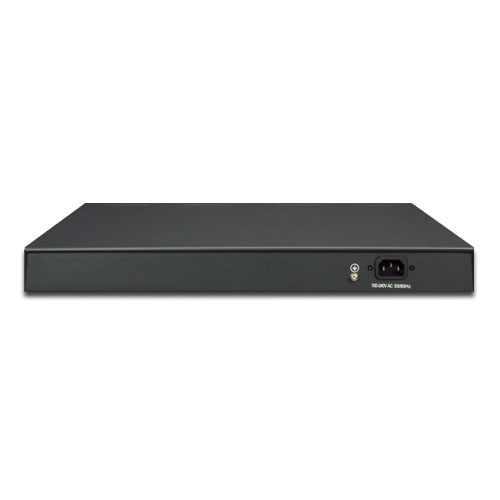

Power Requirements AC 100~240V, 50/60Hz, 5A max.
Power Consumption/Dissipation Max. 330 watts/1132 BTU
Thermal Fan 3
ESD Protection Contact Discharge of ±6KV DC
Air Discharge of ±8KV DC
Surge Immunity ±6KV
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 300 watts
Max. Number of Class 2 PDs 24
Max. Number of Class 3 PDs 23
Max. Number of Class 4 PDs 11
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature: -10 ~ 60 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)

Datasheet

Date Version Description Download
2018-03-02 1.0 FGSW-2622VHP

User's Manual

Date Version Description Download
2017-11-17 2.0 Initial Release for FGSW-2622VHP(v2)
