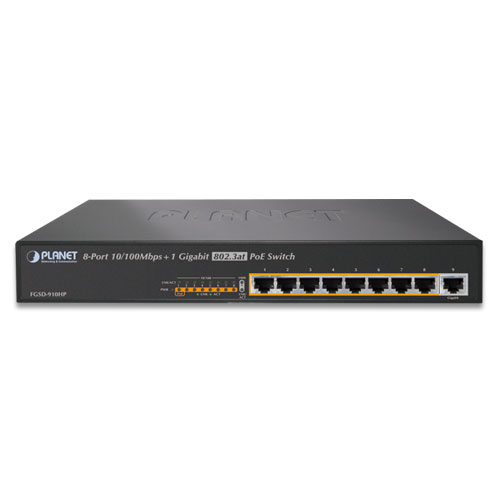

8-Port 10/100Mbps 802.3at PoE + 1-Port 1000Mbps Desktop Switch (130 Watts)

O Planet FGSD-910HP faz parte dos grupos dos LAN Switches, PoE, Switches Não Gerenciáveis, Switches PoE Não Gerenciáveis e dispõe dos seguintes recursos:

  • poe
  • 802.3at 802.3af End-span
  • 30W Per-Port
  • 10M 100M 1000M
  • kg
  • Gigabit-Uplink
Hardware Specifications
Network Connector 8-Port RJ-45 for 10/100Base-TX (Port 1 to Port 8)
1-Port RJ-45 for 10/100/1000Base-T (Port 9)
PoE Inject Port 8-Port with 802.3af / 802.3at PoE injector function
LED Display System: Power (Green)
Per PoE port: PoE (Orange)
       LNK/ACT (Green)
Gigabit port: Speed (Green)
       LNK/ACT (Green)
Switch Architecture Store and Forward switch architecture
MAC Address Table 4K MAC address table with Auto learning function
Switch Fabric 3.6Gbps
Switch Throughput 2.67Mpps@64Bytes
Flow Control Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
Power Requirements AC 100~240V, 50/60Hz, 2.5A max.
Power Consumption 130 watts / 443BTU
Dimensions (W x D x H) 280 x 180 x 43 mm, 1U height
Weight 1.7kg
Power over Ethernet
PoE Standard IEEE 802.3af / 802.3at Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 56V DC, 350mA. Max. 15.4 watts
Per Port 56V DC, 600mA. Max. 30 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts (at room temperature)
Max. number of Class 1 PD 8
Max. number of Class 2 PD 8
Max. number of Class 3 PD 8
Max. number of Class 4 PD 3
Standard Conformance
EMI Safety FCC Class A, CE
Operating Environment 0 ~ 50 degrees C
Storage Environment -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity, non-condensing
Storage Humidity 5 ~ 95%, relative humidity, non-condensing
Standard Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at High Power over Ethernet
