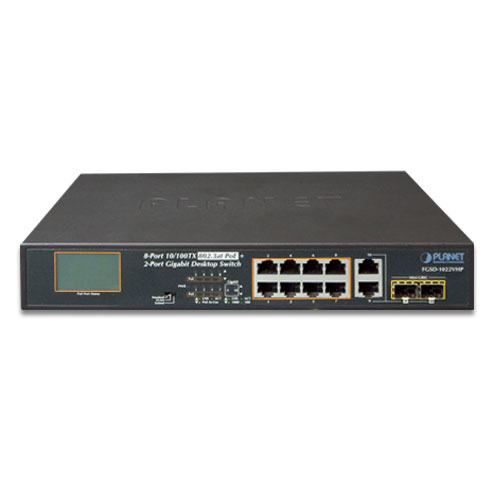

8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Desktop Switch with PoE LCD Monitor

O Planet FGSD-1022VHP faz parte dos grupos dos LAN Switches, PoE, Switches Não Gerenciáveis, Switch PoE com LCD (Display), Switches PoE Não Gerenciáveis, Fast Ethernet PoE Switch, 802.3bt Ultra PoE Switch, 802.3at PoE+ Gigabit Switch, 802.3at PoE+ Fast Ethernet Switch e dispõe dos seguintes recursos:

  • PoE+
  • 802.3at 30-Watts
  • PoE-Status
  • Port-LAN
  • Gigabit-Uplink
  • SFP
Hardware Specifications
802.3af/802.3at PoE Injector Port 8
10/100BASE-TX MDI/MDIX Ports 8
10/100/1000BASE-T MDI/MDIX Ports 2 (Combo Port)
1000BASE-X SFP/mini-GBIC Slots 2 (Combo Port)
DIP Switch 1 for standard mode/VLAN mode/extend mode operation
Switch Architecture Store-and-Forward
Switch Fabric 5.6Gbps/non-blocking
Switch Throughput@64 bytes 4.16Mpps@64Bytes
MAC Address Table 4K entries
Maximum Frame Size 1536 bytes
Flow Control IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex
LED System:
Power (Green)
10/100BASE-TX RJ45 Interfaces:
10/100Mbps LNK/ACT (Green)
PoE-in-Use (Orange)
10/100/1000BASE-T RJ45/SFP Interfaces:
LNK/ACT (Green)
100/1000 (Green)
LCD Monitor ■ Total PoE budget
■ Total PoE usage
■ Per port PoE usage
■ PD light load protection/PD over load protection
■ Short-circuit protection(SCP)
■ Power supply Low voltage alarm/High voltage alarm
Dimensions (W x D x H) 180 x 280 x 44 mm (1U height)
Enclosure Metal
Weight 1.8kg
Power Requirements AC 100~240V, 50/60Hz, 2.5A max.
Power Consumption/Dissipation Max. 130 watts/443 BTU
Thermal Fan 1
ESD Protection Contact Discharge of ±4KV DC
Air Discharge of ±6KV DC
Surge Immunity ±4KV
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 53V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 53V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at High Power over Ethernet Plus
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Datasheet

Date Version Description Download
2016-05-06 1.0 FGSD-1022VHP

User's Manual

Date Version Description Download
2016-02-19 1.0 Initial release.

EC Declaration

Date Version Description Download
2016-03-31 1.0 EC Declaration
