FGSD-1011HP
FGSD-1011HP

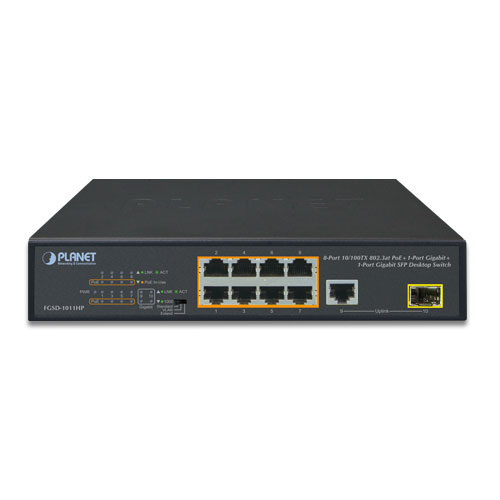

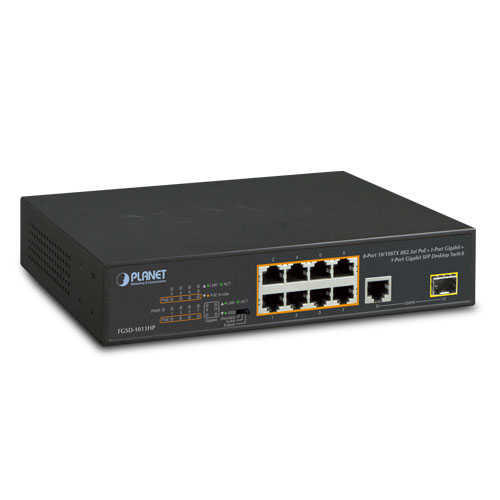

8-Port 10/100TX 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Desktop Switch
O Planet FGSD-1011HP faz parte dos grupos dos PoE, Switches Não Gerenciáveis, Switches PoE Não Gerenciáveis, Fast Ethernet PoE Switch e dispõe dos seguintes recursos:
- 30W Per-Port
- Gigabit-Uplink
- PoE+
- Fanless
- AC-Power
- Port-LAN
| Hardware Specifications | |||||||||||||||
| 10/100Mbps Ports | 8 10/100BASE-TX MDI/MDI-X RJ45 ports | ||||||||||||||
| Gigabit Ports | 1 10/100/1000BASE-T MDI/MDI-X RJ45 port | ||||||||||||||
| SFP Slot | 1 100/1000BASE-X SFP/mini-GBIC interface | ||||||||||||||
| PoE Inject Port | 8-port with 802.3af/at PoE injector function (Ports 1 to 8) | ||||||||||||||
| LED Display | System: Power (Green) 10/100BASE-TX RJ45 Interface: PoE (Orange, Ports 1 to 8) LNK/ACT (Green, Ports 1 to 8) 10/100/1000BASE-T RJ45 Interface: 1000Mbps LNK/ACT (Green, Port 9) 100/1000BASE-X SFP Interface: 1000Mbps LNK/ACT (Green, Port 10) | ||||||||||||||
| DIP Switch | 100m distance in standard mode 250m distance in extend mode (based on the cable category) | ||||||||||||||
| Switch Architecture | Store and Forward switch architecture | ||||||||||||||
| MAC Address Table | 4K MAC address table with auto learning function | ||||||||||||||
| Switch Fabric | 5.6Gbps | ||||||||||||||
| Switch Throughput | 4.16Mpps @64bytes | ||||||||||||||
| Maximum Packet Size | 9K bytes | ||||||||||||||
| Flow Control | Back pressure for half duplex; IEEE 802.3x pause frame for full duplex | ||||||||||||||

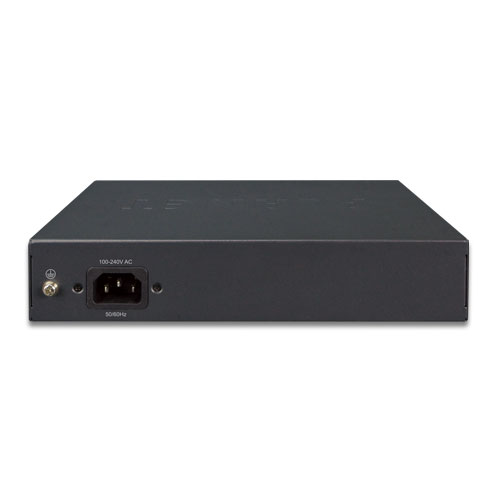

| Power Requirements | AC 100~240V, 2.5A max. | ||||||||||||||
| Power Consumption | 135 watts, 463.2 BTU | ||||||||||||||
| Dimensions (W x D x H) | 220 x 150 x 44 mm | ||||||||||||||
| Weight | 1220g | ||||||||||||||
| ESD Protection | Contact discharge of ±6KV DC Air discharge of ±8KV DC | ||||||||||||||
| Surge Immunity | ±4KV | ||||||||||||||
| Power over Ethernet | |||||||||||||||
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE | ||||||||||||||
| PoE Power Supply Type | End-span | ||||||||||||||
| Power Pin Assignment | 1/2 (+), 3/6 (-) | ||||||||||||||
| PoE Power Output | Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) | ||||||||||||||
| PoE Power Budget | 120 watts | ||||||||||||||
| Number of PDs, 7 watts | 8 | ||||||||||||||
| Number of PDs, 15.4 watts | 8 | ||||||||||||||
| Number of PDs, 30 watts | 4 | ||||||||||||||
| Standard Conformance | |||||||||||||||
| EMI Safety | CE, FCC | ||||||||||||||
| Standard Compliance |
| ||||||||||||||
| Environment | |||||||||||||||
| Operating Environment | 0 ~ 50 degrees C | ||||||||||||||
| Storage Environment | -10 ~ 70 degrees C | ||||||||||||||
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing | ||||||||||||||
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing | ||||||||||||||
