O Planet CS6-16PON4C4S4X faz parte dos grupos dos Passive Optical Network, GPON OLT e dispõe dos seguintes recursos:
- GPON
- Chassis
- 10Gbps SFP+
- IPv6/IPv4 Routing
- Redundant Power

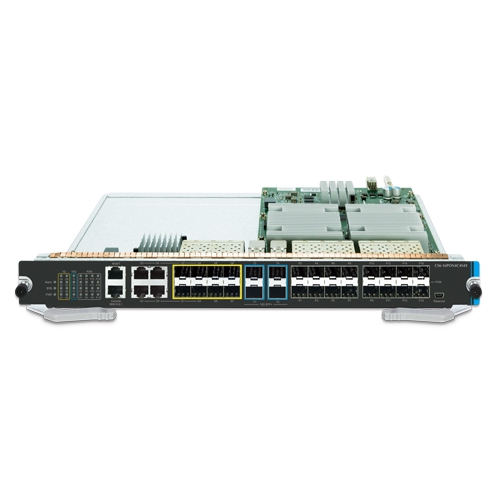

![[item_en]](images/box_CS6-16PON4C4S4X_01.jpg)
| Hardware Specifications | |||
|---|---|---|---|
| GPON Ports | 16, supporting Class C+, Class C++ and Class B+ | ||
| 10/100/1000BASE-T RJ45 Ports | 4 TP/SFP combo interfaces (Ports 1 to 4) | ||
| 1000BASE-X SFP Slots | 4, supporting 1000BASE-SX/LX/BX SFP transceiver Backward compatible with 100BASE-FX SFP transceiver |
||
| 10GBASE-X SFP+ Slots | 4, supporting 10GBASE-SR/LR SFP+ transceiver Backward compatible with 1000BASE-X SFP transceiver |
||
| Management Port | One 10/100BASE-TX RJ45 port | ||
| Console | One RJ45-to-RS232 serial port (9600, 8, N, 1) | ||
| CPU | 600MHz | ||
| RAM | 2GB | ||
| Flash Memory | 256Mbit | ||
| Dimensions (W x D x H) | 399.15 x 302.9 x 40.1 mm | ||
| Weight | 2419g (net weight) | ||
| Switch Fabric | 128Gbps | ||
| Switch Throughput | 95Mpps@64bytes | ||
| LED | 1 x SYS LED – Green 1 x PWR LED – Green 1 x Alarm LED – Red LINK/ACT LED–Green GPON LED–Green |
||
| Chassis Switch | |||
| Chassis Name |
|
||
| Total Number of Slots |
|
||
| Allowed Module Slots |
|
||
| Number of Fan Trays |
|
||
| Dimensions (W x D x H) |
|
||
| Weight |
|
||
| Number of Power Supply Bays |
|
||
| Power Requirement |
|
||
| Power Consumption |
|
||
| Total Port Capacity | |||
| Max. GPON Ports |
|
||
| Max. 10/100/1000BASE-T |
|
||
| Max. 1000BASE-X SFP Ports |
|
||
| Max. 10G SFP+ Ports |
|
||
| Switching Performance | |||
| Switch Processing Scheme | Store-and-Forward | ||
| Switch Capacity | 176Gbps | ||
| Switch Throughput | 232.128Mpps | ||
| ACL Table | 1856 | ||
| Routing Table | IPv4 Protocol: 16K IPv6 Protocol: 16K |
||
| MAC Address Table | 40K | ||
| ARP Table | 4K | ||
| VLAN Table | 4K VLAN entries | ||
| Shared Data Buffer | 2KB | ||
| Multicast Table | 2K | ||
| Jumbo Frame | 2KB | ||
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
||
| GPON Specifications | |||
| Transmission Speed | Downstream: 2.5Gbps Upstream: 1.25Gbps |
||
| Optical Split Ratio | Up to 128 | ||
| Transmission Distance | 20km | ||
| PON Module Wavelength | TX: 1490nm; RX: 1310nm | ||
| PON Fiber Type | 9/125um SMF(Single mode fiber optic) | ||
| Layer 3 Functions | |||
| IP Interfaces | Max. 1K VLAN interfaces for IPv4 Max. 256 VLAN interfaces for IPv6 |
||
| Routing Protocols | Static routing RIP OSPF |
||
| IP Interfaces | Max. 1K VLAN interfaces for IPv4 Max. 256 VLAN interfaces for IPv6 |
||
| Layer 2 Functions | |||
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Bandwidth control on each port Port loopback detect |
||
| Port Mirroring | TX/RX/Both Many to 1 |
||
| VLAN | IEEE 802.1Q tag-based VLAN, up to 4K VLAN groups IEEE 802.1ad Q-in-Q VLAN stacking/tunneling GVRP for VLAN management |
||
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
||
| Multicast | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IGMP Filtering and IGMP Throttling IGMP Proxy reporting IGMP multicast forwarding |
||
| IPv4 IGMP Snooping | IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 2K multicast groups |
||
| Link Aggregation | IEEE 802.3ad Ling Aggregation Control Protocol (LACP) Static trunk link aggregation Supports 32 groups with 8 ports per trunk group Up to 80Gbps bandwidth (full duplex mode) Load Balance Algorithm: Source IP/destination IP/Source + destination IP Source MAC/destination MAC/Source + destination MAC |
||
| Storm Control | Per 100pps 1-14880 |
||
| Bandwidth Control | At least 64Kbps stream | ||
| QoS | PON interfaces: Dynamic Bandwidth Allocation (DBA) Service Level Agreement (SLA) Limiting the upstream/downstream rate based on each ONT/ONU/HGU 8 priority queues on all switch ports Scheduling for priority queues Weighted Round Robin (WRR) Strict priority Traffic classification: IEEE 802.1p CoS/DSCP/Precedence VLAN ID Policy-based ingress and egress QoS |
||
| Ring | ITU-T G.8032 ERPS Ring | ||
| Security Functions | |||
| Access Control List | Supports Standard and Expanded ACL IP-based ACL MAC-based ACL Time-based ACL ACL based on: MAC Address IPv4/IPv6 IP Address Protocol-number sport/dport ToS/Precedence Up to 1k entries |
||
| Security | Transmission data encryption on the PON interface MAC limitation MAC sticky Port isolation DHCP snooping Dynamic ARP inspection IP source guard |
||
| AAA | TACACS+ and IPv4/IPv6 over RADIUS | ||
| Network Access Control | IEEE 802.1x port-based network access control | ||
| Management Functions | |||
| System Configuration | Console and Telnet Web browser SNMP v1, v2c |
||
| Secure Management Interfaces | SSHv2, SSLv3 Maximum 8 sessions for SSH and telnet connection |
||
| System Management | IPv4 and IPv6 dual stack management SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups Firmware upgrade by HTTP/TFTP/FTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP/FTP protocol Supports IEEE 802.1ab LLDP protocol NTP and SNTP client RADIUS authentication for IPv4/IPv6 login user name and password |
||
| Event Management | Remote syslog System log |
||
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMPv2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMPv3 notification RFC 2574 SNMPv3 VACM RFC 2674 Bridge MIB Extensions |
||
| Standards Conformance | |||
| Regulatory Compliance | CE / FCC / LVD | ||
| Standards Compliance | IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 |
||
| Environment | |||
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
||
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
||
