CS-6303R
CS-6303R

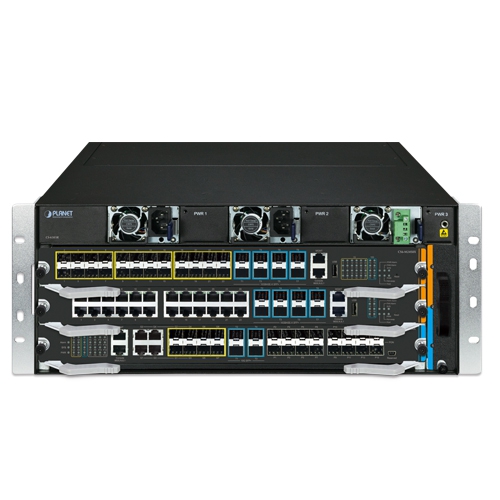

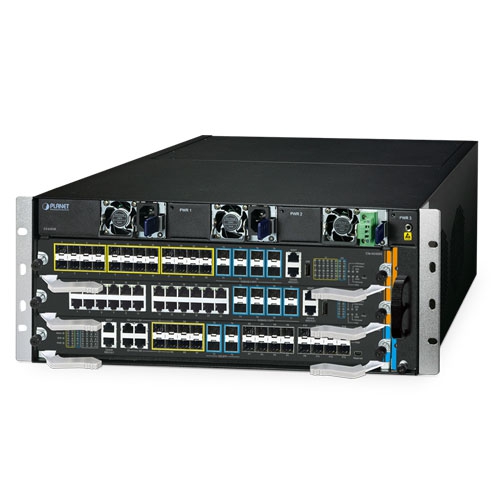

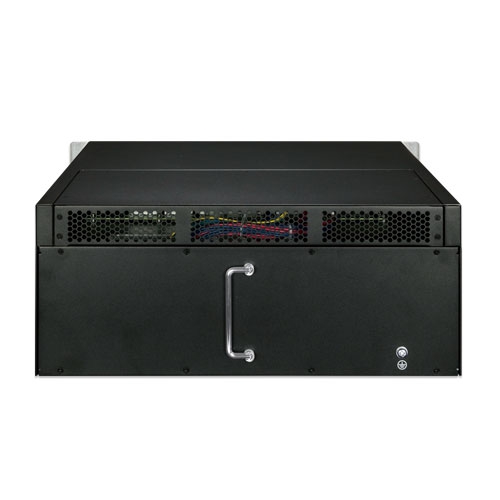

3-slot Layer 3 IPv6/IPv4 Routing Chassis Switch
O Planet CS-6303R faz parte dos grupos dos LAN Switches, Switches Gerenciáveis Camada 3, Layer 3 Chassis, L3 10G Ethernet Switch e dispõe dos seguintes recursos:
- Chassis
- 40Gbps QSFP+
- 10Gbps SFP+
- IPv6/IPv4 Routing
- RING
- Redundant Power
![[item_en]](images/box_CS-6303R_01.jpg)
![[item_en]](images/box_CS-6303R_02.jpg)
![[item_en]](images/box_CS-6303R_03.jpg)
![[item_en]](images/box_CS6-16PON4C4S4X.jpg)
![[item_en]](images/box_CS6-16PON4C4S4X_01.jpg)
![[item_en]](images/box_CS6-M24S8X.jpg)

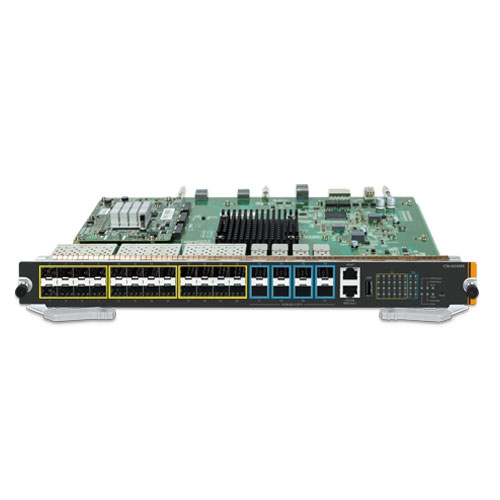

![[item_en]](images/box_CS6-M24S8X_01.jpg)

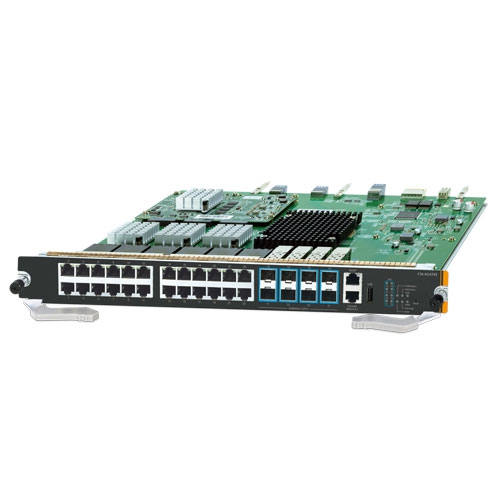

![[item_en]](images/box_CS6-M24T8X.jpg)

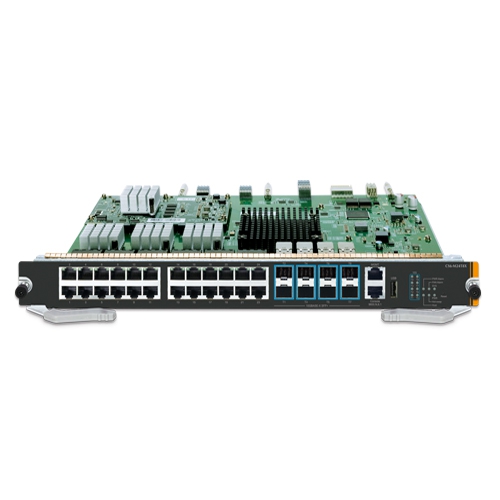

![[item_en]](images/box_CS6-M24T8X_01.jpg)
| Hardware Specifications | |||
|---|---|---|---|
| Total Number of Slots | 3 | ||
| Max. Management Module | 2 (slot 2 and 3) Supports dual master control redundancy and automatic recovery |
||
| Max. Switch Module | 2 (slot 1 and 2) | ||
| Number of Power Supply Bays | 3 | ||
| Number of Fan Trays | 1, hot-pluggable (2 axial fans) | ||
| Dimensions (W x D x H) | 482.6 x 376.2 x 178.2 mm (with rack-mount kit) 4U high |
||
| Weight | 11kg (empty) 14.4kg (Chassis with 1 AC power module and 1 management module) |
||
| Power Requirement | AC: Input 100-240V~, 5A Max 50~60 Hz DC: Input 36-72V , 12.7A Max |
||
| Power Consumption | <350W | ||
| Management Module | |||
| Module Name |
|
||
| Management Port | One 10/100/1000BASE-TX RJ45 port | ||
| Console | One RJ45-to-RS232 serial port (9600, 8, N, 1) | ||
| USB | 1 x USB2.0 Type A for USB Storage device use | ||
| Button | Reset button: System reboot only | ||
| 10/100/1000 RJ45 Ports |
|
||
| 100/1000BASE-X SFP Ports |
|
||
| 10G SFP+ Ports |
|
||
| Available Switch Modules | |||
| CS6-S24S8X | 24-Port 1000BASE-X SFP + 8-Port 10GBASE-X SFP+ Backward compatible with 100BASE-FX SFP transceivers |
||
| CS6-S24T8X | 24-Port 10/100/1000BASE-T + 8-Port 10GBASE-X SFP+ SFP+ slot is backward compatible with 1000BASE-X SFP transceivers |
||
| CS6-S48T | 48-Port 10/100/1000BASE-T | ||
| CS6-S48S | 48-Port 1000BASE-X SFP Backward compatible with 100BASE-FX SFP transceivers |
||
| CS6-S24T24S | 24-Port 10/100/1000BASE-T + 24-Port 1000BASE-X SFP | ||
| CS6-S16X | 16-Port 10GBASE-X SFP+ Backward compatible with 1000BASE-X SFP transceivers |
||
| CS6-S4Q | 4-Port 40GBASE-X QSFP+ Supports 40GBASE-SR4/LR4 QSFP+ transceivers and 40G QSFP+ to 4x10G SFP+ breakout cable |
||
| CS6-16PON4C4S4X | 16-Port xPON + 4-Port Gigabtit TP/SFP + 4-Port 1000BASE-X SFP + 4-Port 10GBASE-X SFP+ SFP+ slot is backward compatible with 1000BASE-X SFP transceivers |
||
| Total Port Capacity | |||
| Max. 10/100/1000BASE-T | 120 | ||
| Max. 1000BASE-X SFP Ports | 120 | ||
| Max. 10G SFP+ Ports | 40 | ||
| Max. 40G QSFP+ Ports | 8 | ||
| Max. GPON Ports | 48 | ||
| Switching Performance | |||
| Switch Processing Scheme | Store-and-Forward | ||
| Switch Throughput | 552/1104 Mpps | ||
| ACL Table | Ingress Filter: 2816 Egress Filter: 512 |
||
| Routing Table | IPv4 Protocol: 16K IPv6 Protocol: 16K |
||
| MAC Address Table | 32K | ||
| ARP Table | IPv4 16K IPv6 8K | ||
| VLAN Table | 4K VLAN entries | ||
| Shared Data Buffer | 32MB | ||
| Multicast Table | Layer3 2K Layer2 2K |
||
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
||
| Jumbo Frame | 9216Bytes | ||
| FLASH | 64Mbytes | ||
| RAM | 1Gbytes | ||
| IPv4 Layer 3 Functions | |||
| IP Routing Protocol | RIP v1/v2 OSPFv2 BGP (Border Gateway Protocol) Static routing |
||
| Multicast Routing Protocol | PIM-DM and PIM-SM PIM-SSM |
||
| Routing Interface | 256 | ||
| Routing Functions | VRRP Policy routing Load balance through equal-cost routing GR (Graceful Restart) of OSPF and BGP BFD (Bidirectional Forwarding Detection) for OSPF and BGP IS-IS, Intermediate system to intermediate system |
||
| IPv6 Layer 3 Functions | |||
| IP Routing Protocol | RIPng OSPFv3 BGP4+ |
||
| Multicast Routing Protocol | PIM-DM and PIM-SM PIM-SSM |
||
| Routing Features | Manual tunnel ISATAP tunnel 6-to-4 tunnel |
||
| IPv6 Functions | ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery Path MTU Discovery |
||
| Layer 2 Functions | |||
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Bandwidth control on each port Port loopback detect |
||
| Port Mirroring | TX/RX/Both Many to 1 |
||
| Link Aggregation | Supports link aggregation cross switch module | ||
| VLAN | IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q VLAN stacking/tunneling GVRP for VLAN management Private VLAN Up to 4K VLAN groups |
||
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU protection, root protection |
||
| IPv4 IGMP Snooping | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IGMP Filtering and IGMP Throttling IGMP Proxy reportin IGMP mmulticast forwarding Up to 8K multicast groups |
||
| IPv6 MLD Snooping | IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 8K multicast groups |
||
| QoS | 8 priority queues on all switch ports Scheduling for priority queues Weighted Round Robin (WRR) Strict priority (SP) SP+WRR Traffic classification: IEEE 802.1p CoS DSCP DiffServ Precedence TOS VLAN ID IP ACL MAC ACL Policy-based ingress and egress QoS 802.1p and DSCP priority remark |
||
| Storm Control | Suppression of broadcast, multicast and unknown unicast packet | ||
| Bandwidth Control | Ingress and Egress At least 64Kbps stream |
||
| Ring | MSTP, IEEE 802.1s Multiple Spanning Tree Protocol | ||
| Security Functions | |||
| Access Control List | Supports Standard and Expanded ACL IP-based ACL MAC-based ACL Time-based ACL ACL based on: MAC Address IPv4/IPv6 IP Address Protocol-number sport/dport ToS/Precedence Ingress Filter: 2560 entries Egress Filter: 1024 entries |
||
| Security | MAC address limitation and MAC address filtering MAC sticky (IP + MAC + Port binding) Port isolation DHCP snooping, DHCP option 82 Dynamic ARP inspection IP source guard Defined against DoS or TCP attacks |
||
| AAA | TACACS+ and IPv4/IPv6 over RADIUS | ||
| Network Access Control | IEEE 802.1x port-based network access control | ||
| Management Functions | |||
| System Configuration | Console, Telnet and SSH Web browser SNMP v1/v2/v3 |
||
| Secure Management Interfaces | SSHv2, SSLv3 Maximum 8 sessions for SSH and Telnet connection |
||
| Management Interface | CLI/MGMT/Telnet/SSH | ||
| System Management | IPv4 and IPv6 dual stack management SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups Firmware upgrade by TFTP protocol through Ethernet network Configuration upload/download through TFTP protocol Supports IEEE 802.1ab LLDP protocol NTP and SNTP client RADIUS authentication for IPv4/IPv6 login user name and password Statistics analysis of sFlow and Netflow |
||
| Event Management | Remote syslog System log |
||
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMPv2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMPv3 notification RFC 2574 SNMPv3 VACM RFC 2674 Bridge MIB Extensions |
||
| Standards Conformance | |||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gigabit Ethernet IEEE 802.3ba 40Gigabit Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1d Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Double VLAN tagging (Q-in-Q) IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3az Energy Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 RFC 2080 RIPng for IPv6 RFC 2740 OSPFv3 for IPv6 |
||
| Environment | |||
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
||
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
||
