BSP-115PV-15A

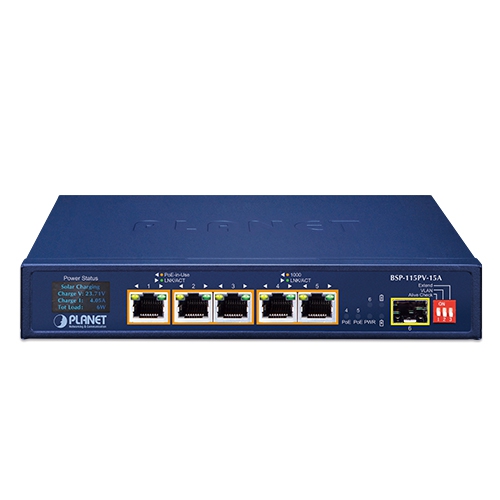

5-Port 802.3at PoE+ Solar PoE Switch with 1-Port 1000X SFP and LCD Display

Adicionar à cotação

O Planet BSP-115PV-15A faz parte dos grupos dos PoE, Ethernet Industrial, Sistema PoE para Painel Solar, Dispositivos Alimentados por PoE, Sistema PoE para Painel Solar, Unmanaged PoE Switch e dispõe dos seguintes recursos:

  • 802.3at End span
[item_en][item_en]
Hardware Specifications
Copper Ports 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Port 1 100/1000BASE-X SFP ports
Connector Removable 6-pin terminal block
Pin 1/2(+/-) , 3/4(+/-) for PV panel (In parallel);
Pin 5/6(-/+) for battery charging and discharging
The PV input is compliant with DC input but cannot be connected simultaneously with solar input to prevent damage to the device.
DIP Switch Front Panel:
　Alive Check: All PoE ports enable PD Alive check function.
　VLAN: Port isolation
　Extend: Long distance PoE switch.

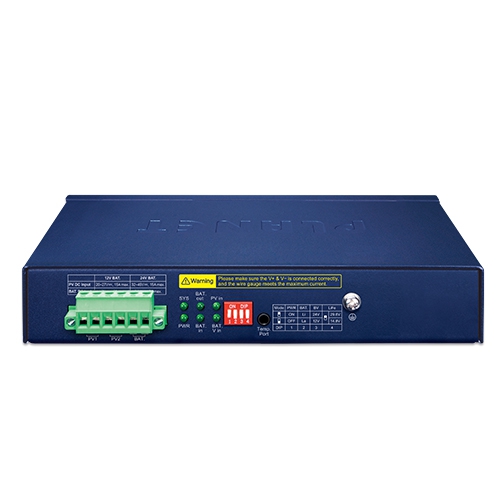

Rear Panel:
　PWR: Equipment power switch
　BAT: Battery type switch
　BV: Battery voltage switch
　LiFe: Lithium iron phosphate switch
Power Requirements Supports 20-27V solar panel input (open circuit voltage) with 12V battery, maximum solar panel input power of 405W, and maximum circuit 15A.
Supports 32-45V solar panel input (open circuit voltage) with 24V battery, maximum solar panel input power of 675W, and maximum circuit 15A.
Charging Function Integrated automatic charging and discharging, maximum efficiency 98%, maximum charging current 15A
Integrated battery protection function
Integrated battery float charging function
Supports over-temperature protection function
Battery Type Based on Full Loading power consumption:
　12V / 24V lead-acid battery, maximum charging current 15A
　12.6V/25. 2V lithium battery, maximum charging current 15A
　14.6V/29.2V lithium iron battery, maximum charging current 15A

Note: Recommended capacity 500AH in fully power 120W usage
Power Consumption/ Dissipation 3 watts, 10.2BTU (Standby without PoE function)
140 watts, 477 BTU (Full loading with PoE function)
Dimensions (W x D x H) 196.72 x 141.8 x 34 mm
Weight 820g
LCD Monitor (W x D) 26.77 x 16 mm, 1.1-inch
Temperature Sensor Temperature Detector -20 ~ 120 degrees C
Humidity Detector 0 ~ 100 % RH
ESD Protection ±8KV air gap discharge
±4KV contact discharge
Surge Immunity 2KV
Enclosure IP30 metal case
Installation Desktop/Wall-mount ear
LED Indicators Front Panel:
System:
　Green: PWR ,BAT.out,BAT.in
Per 10/100/1000T RJ45 Port: (Port 1~Port 3):
　Green: LNK/ACT (10/100/1000Mbps)
　Amer: PoE-in-use
Per 10/100/1000T RJ45 Port: (Port 4~Port 5):
　Green: LNK/ACT (10/100/1000Mbps)
　Amer: 1000Mbps
　Green: PoE-in-use
Per SFP Port: (Port 6):
　Green: LNK/ACT (100/1000Mbps)

Rear Panel:
System:
　Green: SYS, PWR, PV in
Battery:
　Green: BAT.out, BAT.in, BAT.V in
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 12Gbps/non-blocking
Switch Throughput 8.92Mpps@64 bytes
MAC Address Table 2K entries
Shared Data Buffer 2.5Mb
Jumbo Frame 10K bytes
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet PSE
PoE Power Supply Type End-span
PoE Power Output Per port 48V DC, max. 35 watts
Power Pin Assignment Port 1: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-)
Ports 2~5: 1/2 (+), 3/6 (-)
PoE Power Budget Maximum 120W (depending on power input)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet
Environment
Operating Temperature: -20 ~ 65 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Datasheet
Date Version Description Download
2024-08-30 1.0 BSP-115PV-15A
User's Manual
Date Version Description Download
2024-08-23 1.0 Initial release.
