BSP-115HP-5A

5-Port Hybrid PoE Solar PoE Switch with 1-Port 1000X SFP

Adicionar à cotação

O Planet BSP-115HP-5A faz parte dos grupos dos PoE, Ethernet Industrial, Sistema PoE para Painel Solar, Dispositivos Alimentados por PoE, Sistema PoE para Painel Solar, Unmanaged PoE Switch e dispõe dos seguintes recursos:

    [item_en][item_en]
    Hardware Specifications
    Copper Ports 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
    SFP Port 1 100/1000BASE-X SFP port
    Connector Removable 6-pin terminal block
    Pin 1/2(+/-) for PV panel
    Pin 3/4(+/-) for DC Power
    Pin 5/6(-/+) for battery charging and discharging
    DIP Switch Front Panel:
    　Alive Check: All PoE ports enable PD Alive check function.
    　VLAN: Port isolation
    　Extend: Long distance PoE switch.
    　P4: PoE 24V/48V switch
    　P5: PoE 24V/48V switch

    Rear Panel:
    　PWR: Equipment power switch
    　BAT: Battery type switch
    　BV: Battery voltage switch
    　LiFe: Lithium iron phosphate switch
    Power Requirements Supports 15-27V solar panel input (open circuit voltage) with 12V battery, maximum solar panel input power of 135W, and maximum circuit 5A.
    Supports 32-45V solar panel input (open circuit voltage) with 24V battery, maximum solar panel input power of 225W, and maximum circuit 5A.
    Supports 15~24V DC input with 12V battery.
    Supports 32~36V DC input with 24V battery
    Charging Function Integrated automatic charging and discharging, maximum efficiency 98%, maximum charging current 5A
    Integrated battery protection function
    Integrated battery float charging function
    Supports over-temperature protection function
    Battery Type Based on full loading of power consumption:
    　12V / 24V lead-acid battery, recommended capacity 290AH, maximum charging current 5A
    　12.6V/25. 2V lithium battery, recommended capacity 290AH, maximum charging current 5A
    　14.6V/29.2V lithium iron battery, recommended capacity 290AH, maximum charging current 5A
    Note: Recommended capacity 290AH in fully power 65W usage
    Power Consumption/ Dissipation 3.36 watts, 11.5BTU (Standby without PoE function)
    75.6 watts, 257.8 BTU (Full loading with PoE function)
    Dimensions (W x D x H) 159.01 x 141.8 x 34 mm
    Weight 690g
    ESD Protection ±8KV air gap discharge
    ±4KV contact discharge
    Temperature Sensor Temperature Detector -20 ~ 100 degrees C
    Surge Immunity 2KV
    Enclosure IP30 metal case
    Installation Desktop/Wall-mount ear

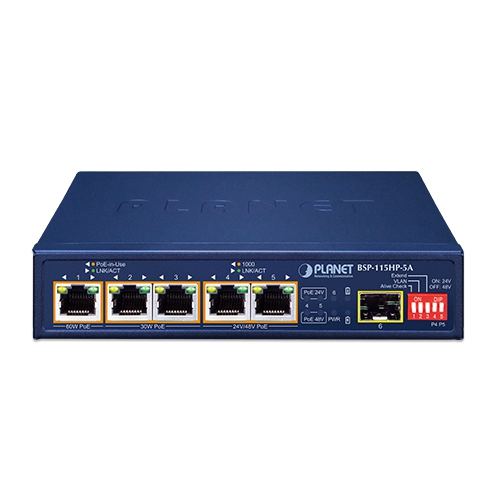

    LED Indicators Front Panel:
    System:
    　Green: PWR , BAT. out, BAT. in
    Per 10/100/1000T RJ45 Port: (Port 1~Port 3):
    　Green: LNK/ACT (10/100/1000Mbps)
    　Amber: PoE-in-use
    Per 10/100/1000T RJ45 Port: (Port 4~Port 5):
    　Green: LNK/ACT (10/100/1000Mbps)
    　Amber: 1000Mbps
    　Green: 24V PoE-in-use
    　Green: 48V PoE-in-use
    Per SFP Port: (Port 6):
    　Green: LNK/ACT (100/1000Mbps)

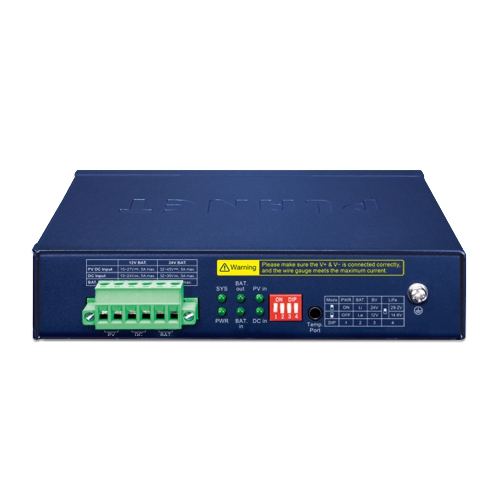

    Rear Panel:
    System:
    　Green: SYS, PWR, PV in
    Battery:
    　Green: BAT. out, BAT. in, DC in
    Switching Specifications
    Switch Architecture Store-and-Forward
    Switch Fabric 12Gbps/non-blocking
    Switch Throughput 8.92Mpps@64 bytes
    MAC Address Table 2K entries
    Shared Data Buffer 2.5Mb
    Jumbo Frame 10K bytes
    Power over Ethernet
    PoE Standard IEEE 802.3af/802.3at/802.3bt Power over Ethernet PSE
    PoE Power Supply Type End-span
    PoE Power Output Port 1: 48V DC, max. 60 watts
    Ports 2 to 3: 48V DC, max. 35 watts
    Ports 4 to 5: 24V DC, max. 25 watts or 48V DC, max. 35 watts
    Power Pin Assignment Port 1: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-)
    Port 2~5: 1/2 (+), 3/6 (-)
    Port 4~5 24V: Passive 4/5(+), 7/8(-)
    PoE Power Budget Maximum 65W (depending on power input)
    Standards Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3z Gigabit SX/LX
    IEEE 802.3x Flow Control and Back Pressure
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3bt Power over Ethernet Plus Plus
    IEEE 802.3az Energy-Efficient Ethernet
    Environment
    Operating Temperature: -20 ~ 65 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
    Storage Temperature: -40 ~ 70 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
    Datasheet
    Date Version Description Download
    2024-08-30 1.0 BSP-115HP-5A
    User's Manual
    Date Version Description Download
    2024-08-23 1.0 Initial release.
