AVS-4210-24HP4X
AVS-4210-24HP4X
8-Port 10/100/1000T 802.3bt PoE + 16-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed AV Switch
O Planet AVS-4210-24HP4X faz parte dos grupos dos LAN Switches, PoE, Switches PoE Gerenciáveis Camada 2/2+, Switches Gerenciáveis Camada L2/L4, 802.3bt Ultra PoE L2/L4 Gigabit Switch, L2/L4 Gigabit Ethernet Switch e dispõe dos seguintes recursos:
- 802.1Q VLAN

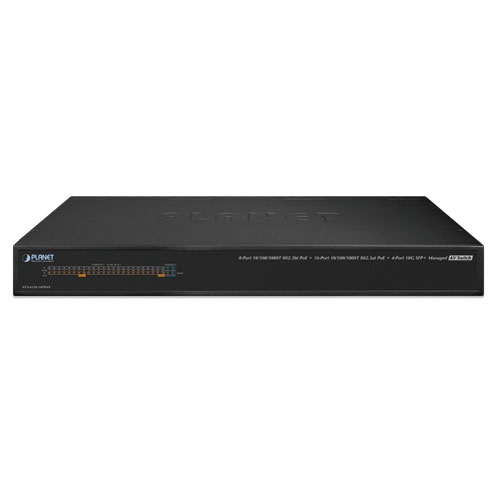

![[item_en]](images/box_AVS-4210-24HP4X_01.jpg)

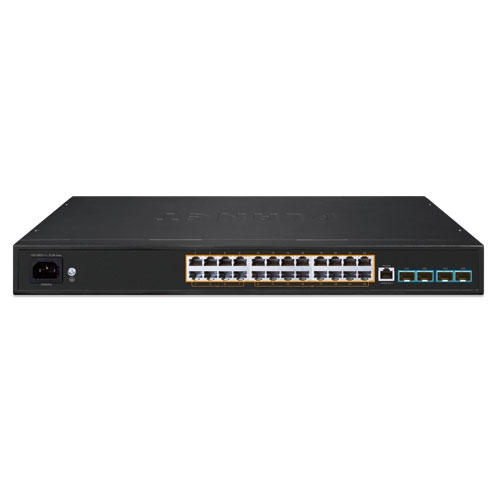

![[item_en]](images/box_AVS-4210-24HP4X_02.jpg)
| Hardware Specifications | |
|---|---|
| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| PoE Injector Port | 8 ports with 802.3bt PoE++ injector function (Ports 1 to 8) 16 ports with 802.3at PoE+ injector function (Ports 9 to 24) |
| SFP Ports | 4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4) Backward compatible with 100/1G/2.5GBASE-X SFP transceivers |
| Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Power Requirements | AC 100~240V, 50/60Hz |
| Power Consumption/ Dissipation | Maximum 15.1 watts / 51.5 BTU (system on) Maximum 533 watts/1818.7 BTU (full loading) |
| Dimensions (W x D x H) | 440 x 207 x 44mm |
| Weight | 3,443g |
| Installation | Rack mount |
| ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
| LED | System: Power LED (Green) SYS LED (Green) Ports: 10/100/1000 RJ45 Ports LNK/ACT (Green) 10G SFP+ Interface LNK/ACT (Green) PoE-in-Use (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 128Gbps/non-blocking |
| Switch Throughput@64 bytes | 95.23Mpps @64 bytes |
| MAC Address Table | 16K entries |
| Shared Data Buffer | 12Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 12 Kbytes |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE++ PSE (Ports 1 to 8) IEEE 802.3af/at PoE+ PSE (Ports 9 to 24) |
| PoE Power Supply Type | End-span/802.3bt (Ports 1 to 8) End-span (Ports 9 to 24) |
| Power Pin Assignment | 802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) 802.3at PoE: End-span: 1/2(-), 3/6(+) |
| PoE Power Output | Port 1 to 8 – 95W (max.) Port 9 to 24 – 32W (max.) |
| PoE Power Budget | 450 watts (max.) 200 watts @ fanless mode |
| Max. Number of 95W 802.3bt Type 4 PDs | 5 |
| Max. Number of 60W 802.3bt Type 3 PDs | 8 |
| Max. Number of 30W 802.3at Type 2 PDs | 16 |
| PoE Management Functions | |
| PoE Management | System PoE Admin Mode Fanless Mode Consumption Mode/Allocation Mode Temperature Threshold |
| Enhanced PoE Mode | Standard/Legacy/UPoE |
| Active PoE Device Live Detection | Yes |
| PoE Power Recycling | Yes, daily or predefined schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extended Mode | Yes, max. up to 250 meters |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor Up to 4 sessions |
| VLAN | 802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD snooping v1, v2, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
| QoS | 8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries |
| Port Security | Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | Console Web browser Telnet SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS/CloudViewer/CloudViewerPro |
| Event Management | Remote/Local Syslog System log |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 60 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
