48V DC
PWR-120-48/PWR-240-48/PWR-480-48/PWR-75-48/PWR-960-48
DC Single Output Industrial DIN Rail Power Supply Units
O Planet PWR-120-48/PWR-240-48/PWR-480-48/PWR-75-48/PWR-960-48 faz parte dos grupos dos Ethernet Industrial, Fonte de Alimentação para trilho DIN, Conversor Industrial Ethernet para RS-422/485 - Modbus, Industrial Serial over Ethernet, 48V DC, DIN-Rail Serial over Ethernet, Industrial Automation, EtherCAT Slave I/O Module e dispõe dos seguintes recursos:
- AC-IN DC OUT
- 48V-DC-Power-Output
- DIN Rail
![[item_en]](images/file_9747_box_PWR-75-48.jpg)
![[item_en]](images/file_9897_box_PWR-120-48v2.jpg)
![[item_en]](images/file_3568_box_PWR-240-48v2.jpg)
![[item_en]](images/file_6695_box_PWR-480-48v2.jpg)

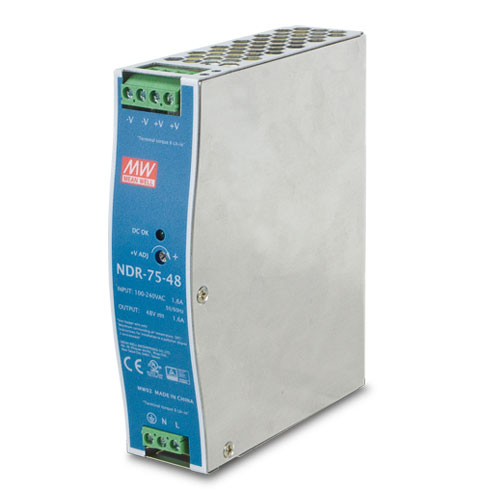

| PWR-75-48 (MEAN WELL/NDR-75-48) | |
| Dimensions (W x H x D) | 32 x 125 x 102 mm |
| Weight (kg) | 0.51kg |
| Input Voltage | 100-240V AC,50/60Hz, 1.45A |
| Power Output | 75 watts,48V, 1.6A |
| Temperature | Operating:-20~70 degrees C (**) Storage:-40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| *Note | *The specification is for PWR-75-48 hardware version 1 only. **Please refer to output load derating curve from product specification. |
| PWR-120-48 (MEAN WELL/NDR-120-48) | |
| Hardware Version | 2 |
| Dimensions (W x D x H) | 40 x 125 x 113 mm |
| Weight (kg) | 0.6kg |
| Input Voltage | 100-240V AC,50/60Hz, 2.25A |
| Power Output | 120 watts, 48V, 2.5A |
| Temperature | Operating:-20~70 degrees C (**) Storage:-40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| *Note | *The specification is for PWR-120-48 hardware version 2 only. **Please refer to output load derating curve from product specification. |

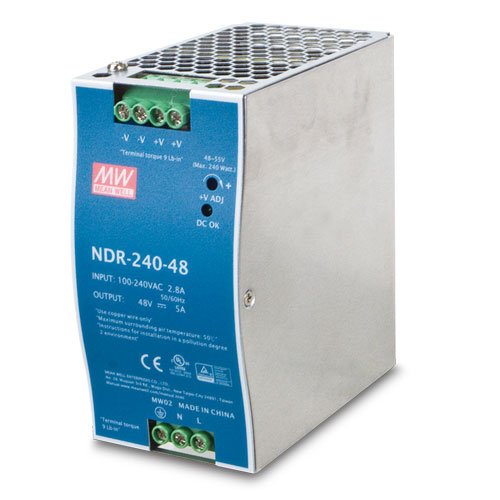

| PWR-240-48 (MEAN WELL/NDR-240-48) | |
| Hardware Version | 2 |
| Dimensions (W x D x H) | 63 x 125 x 113 mm |
| Weight (kg) | 1kg |
| Input Voltage | 100-240V AC, 50/60Hz, 2.5A |
| Power Output | 240 watts, 48V, 5A |
| Temperature | Operating:-20~70 degrees C (**) Storage:-40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| *Note | *The specification is for PWR-240-48 hardware version 2 only. **Please refer to output load derating curve from product specification. |

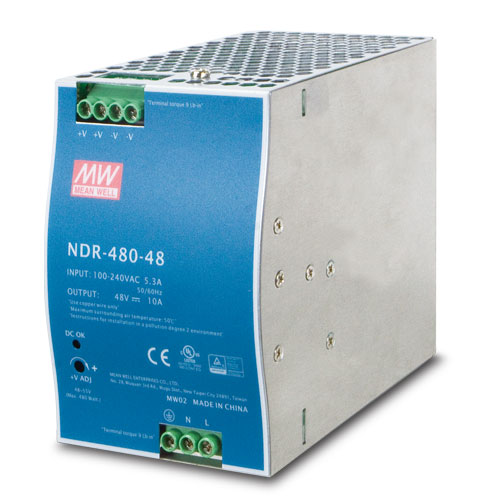

| PWR-480-48 (MEAN WELL/NDR-480-48) | |
| Hardware Version | 2 |
| Dimensions (W x D x H) | 85 x 125 x 128mm |
| Weight (kg) | 1.5kg |
| Input Voltage | 100-240V AC,50/60Hz, 4.8A |
| Power Output | 480 watts, 48V, 10A |
| Temperature | Operating:-20~70 degrees C (**) Storage:-40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| *Note | *The specification is for PWR-480-48 hardware version 2 only. **Please refer to output load derating curve from product specification. |
